Shop MARATHON

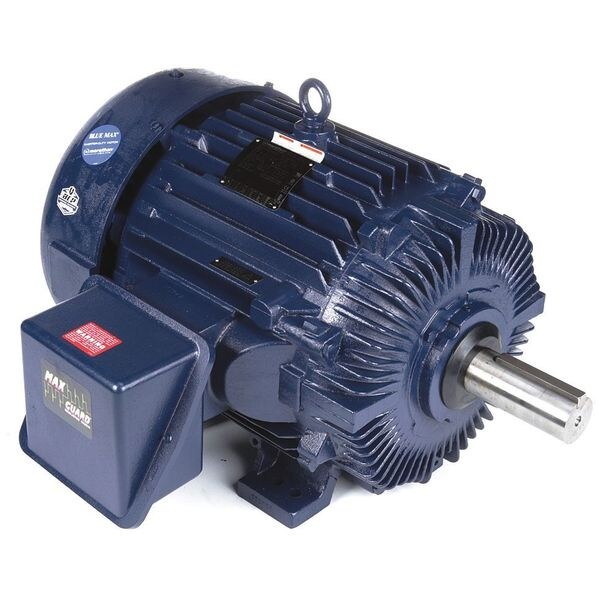

Vector Motor, 3-Phase, 100HP, 230/460V

  • Mfr # 405THFS8036

  • Zoro # G9922884

product price:  $17,445.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
100
Nameplate RPM
1,785
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405THFS8036
Zoro #
G9922884
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
39 5/16 in
Shaft Length
7 1/2 in
Shaft Dia.
2 7/8 in
Encoder Shaft Dimensions
1 in x 1 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
405T
Encoder Shaft Length
1 3/4 in
Shaft Diameter
2 7/8 in
Encoder Shaft Diameter
1 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
100
Nameplate RPM
1,785
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
405T
Voltage
230/460V AC
Motor Thermal Protection
T-Stat
Ins. Class
H
Encoder Acceptable
Yes
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Bearings
Ball
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Phase
Three
Encoder Shaft
1 in x 1-3/4 in
NEMA Design
A
Full Load Amps
230.0/115.0 A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CE, CSA, UL Recognized
Warranty
3 yr
Motor Efficiency Group
Energy Efficient
Max. Operating Frequency
90 Hz
Insulation Feature
Class F
Base
Rigid
Ambient Temperature
40 Degrees C
Nominal Efficiency
94.5 %
Duty
Continuous
Frame Material
Cast Iron
Motor Frame Material
Cast Iron
Motor Mounting Type
Rigid Base
RPM Range
1,701-1,800
Finish
Enamel
Hz
60 Hz
Motor Application
Crane
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
104 Degrees F
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Weight
1,308 lb
Conduit Box Location
Exterior
Conduit Box Position
F1, F2
Insulation Class
H
Manufacturers Warranty
3 yr
Frame Finish
Enamel-Coated
Maximum Speed
1,800 RPM
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Standard Efficiency
Nameplate Service Factor @ 60 Hz
1
NEMA Design Class
A
Product Type
Vector Motor
Frequency
60 Hz
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rated
Inverter Rated
Maximum Operating Frequency
90 Hz
Shaft Design
Keyed
Full Load Current @ 60 Hz
230.0/115.0 A

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 100 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 230.0/115.0 A, 405T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
