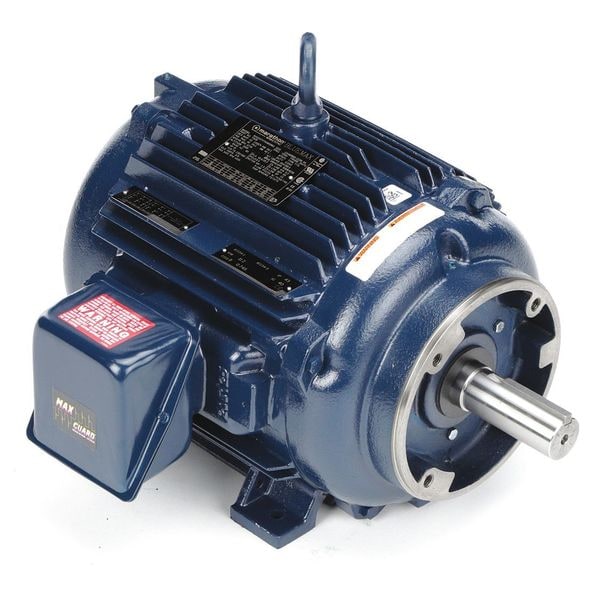

Vector Motor, 3-Phase, 15HP, 230/460V

  • Mfr # 254THTNA8058
  • Zoro # G9923024
product price:
$
4,031.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
15
Nameplate RPM
1,772
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254THTNA8058
Zoro #
G9923024
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
3 3/4 in
Overall Length
23 3/8 in
Shaft Dia.
1 5/8 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Frame Size
254TC
Shaft Diameter
1 5/8 in
Encoder Shaft Diameter
5/8 in
Encoder Shaft Length
1 3/4 in
Wire Rope Length
23 3/8 in
Length
23 3/8 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
15
Nameplate RPM
1,772
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
254TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Standards
CE, CSA, UL Recognized
Encoder Shaft
5/8 in x 1-3/4 in
CC Number
CC003A
Motor Mounting Type
Rigid Base
Motor Efficiency Group
NEMA Premium Efficient
Nominal Efficiency
93 %
Finish
Enamel
Phase
Three
Ins. Class
H
Duty
Continuous
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Frame Material
Cast Iron
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Warranty
3 yr
Motor Frame Material
Cast Iron
Max. Operating Frequency
120 Hz
Hz
60 Hz
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Insulation Feature
Class F
NEMA Design
A
Encoder Acceptable
Yes
RPM Range
1,701-1,800
Base
Rigid
Motor Application
Crane
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Full Load Amps
40.5/20.2 A
Motor Service Factor
1
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
No. of Speeds
1
Weight
334 lb
Usable @ 208V
Not Usable at 208V
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Position
F1, F2
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Frame Finish
Enamel-Coated
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
NEMA Design Class
A
Frequency
60 Hz
Maximum Speed
1,800 RPM
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1
Insulation Class
H
Inverter Rated
Inverter Rated
Full Load Current @ 60 Hz
40.5/20.2 A
Product Type
Vector Motor
Maximum Operating Frequency
120 Hz

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1,772, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 40.5/20.2 A, 254TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
