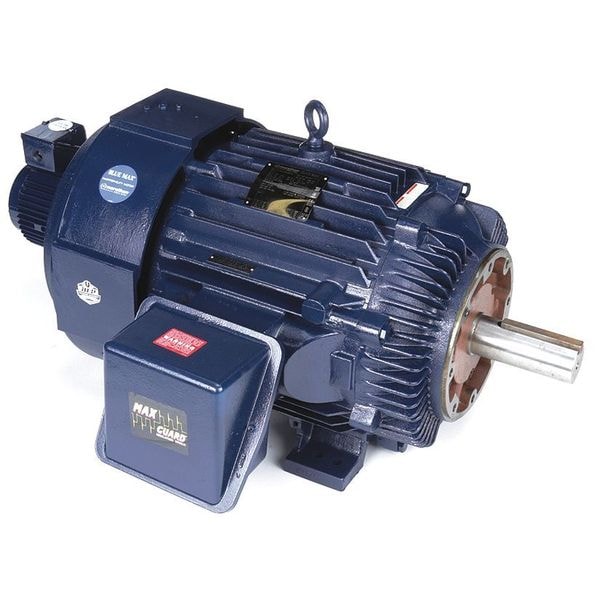

Vector Motor, 3-Phase, 100HP, 230/460V

  • Mfr # 405THFS8046
  • Zoro # G9922875
product price:
$
21,708.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
100
Nameplate RPM
1,785
Speed Range
2,000:1
Max. Speed
1,200 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405THFS8046
Zoro #
G9922875
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
49 3/4 in
Shaft Dia.
2 7/8 in
Shaft Length
7 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Shaft Diameter
2 7/8 in
Encoder Shaft Diameter
1 in
Frame Size
405TC
Encoder Shaft Length
1 3/4 in
Wire Rope Length
49 3/4 in
Length
49 3/4 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
100
Nameplate RPM
1,785
Speed Range
2,000:1
Max. Speed
1,200 RPM
Frame
405TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
RPM Range
1,701-1,800
Motor Service Factor
1
Warranty
3 yr
Max. Operating Frequency
90 Hz
Motor Application
Crane
Ins. Class
H
Frame Material
Cast Iron
Ambient Temperature
40 Degrees C
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Encoder Acceptable
Yes
NEMA Design
A
Motor Efficiency Group
Energy Efficient
Hz
60 Hz
Encoder Shaft
1 in x 1-3/4 in
Standards
CE, CSA, UL Recognized
Motor Shaft Design
Keyed
Duty
Continuous
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Motor Mounting Type
Rigid Base
Full Load Amps
230.0/115.0 A
Finish
Enamel
Motor Frame Material
Cast Iron
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Shaft Rotation
CW/CCW
Base
Rigid
Nominal Efficiency
94.5 %
Insulation Feature
Class F
Phase
Three
Weight
1,529 lb
No. of Speeds
1
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Conduit Box Position
F1, F2
Motor Enclosure Type
Totally Enclosed Blower Cooled
Insulation Class
H
Ambient Temperature - Maximum
40 Degrees C
Maximum Operating Frequency
90 Hz
Manufacturers Warranty
3 yr
Shaft Design
Keyed
Maximum Speed
1,200 RPM
Bearing Type
Ball
Full Load Current @ 60 Hz
230.0/115.0 A
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
NEMA Energy Efficient
Inverter Rated
Inverter Rated
NEMA Design Class
A
Frame Finish
Enamel-Coated
Frequency
60 Hz
Product Type
Vector Motor

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 100 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 230.0/115.0 A, 405TC Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
