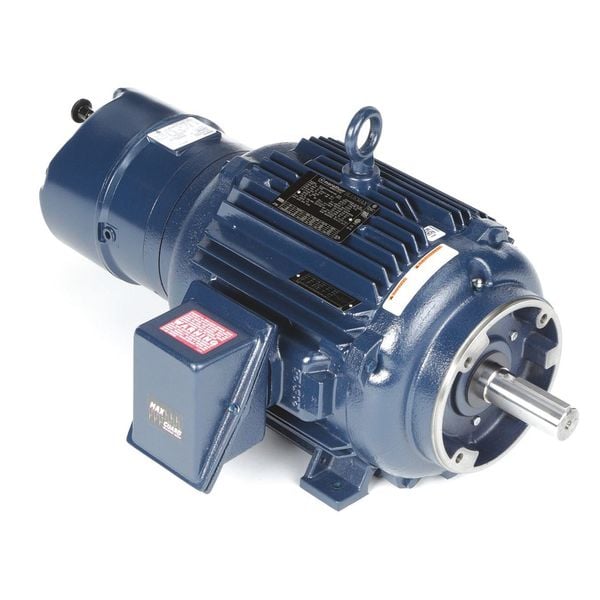

Vector Motor, 3-Phase, 15HP, 230/460V

  • Mfr # 254THTNA8071

  • Zoro # G9923094

product price:  $9,656.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
15
Torque
75 ft-lb
Nameplate RPM
1,772
Speed Range
2,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254THTNA8071
Zoro #
G9923094
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
3 3/4 in
Overall Length
31 1/2 in
Shaft Dia.
1 5/8 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 3/8 in x 1 31/32 in
Encoder Shaft Length
1 31/32 in
Frame Size
254TC
Shaft Diameter
1 5/8 in
Encoder Shaft Diameter
1 3/8 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
15
Torque
75 ft-lb
Nameplate RPM
1,772
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
254TC
Voltage
230/460V AC
Motor Thermal Protection
None
Encoder Acceptable
Yes
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Max. Operating Frequency
120 Hz
Base
Rigid
Ambient Temperature
40 Degrees C
Frame Material
Cast Iron
Nominal Efficiency
93 %
Motor Application
Crane
Ins. Class
F
Motor Mounting Type
Rigid Base
Phase
Three
RPM Range
1,701-1,800
Motor Bearings
Ball
NEMA Design
A
Standards
CE, CSA, UL Recognized
Motor Efficiency Group
NEMA Premium Efficient
Motor Shaft Design
Keyed
Encoder Shaft
1-3/8 in x 1-15/16 in
Insulation Feature
Class F
Motor Frame Material
Cast Iron
CC Number
CC003A
Hz
60 Hz
Duty
Continuous
Finish
Enamel
Full Load Amps
40.5/20.2 A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Mounting Position
Horizontal
Warranty
3 yr
Green Certification or Other Recognition
NEMA Premium(R) Rated
Max. Ambient Temp.
104 Degrees F
Weight
384 lb
Includes
140% Rated Spring-Set Self-Adjusting Nema 2 Disk Brake
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1
NEMA Design Class
A
Full Load Current @ 60 Hz
40.5/20.2 A
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Product Type
Vector Motor
Ambient Temperature - Maximum
40 Degrees C
Maximum Operating Frequency
120 Hz
Inverter Rated
Inverter Rated
Frame Finish
Enamel-Coated
Manufacturers Warranty
3 yr
Frequency
60 Hz
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Maximum Speed
1,800 RPM

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 15 HP, Nameplate RPM 1,772, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 40.5/20.2 A, 254TC Frame, Torque 75 ft-lb, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
