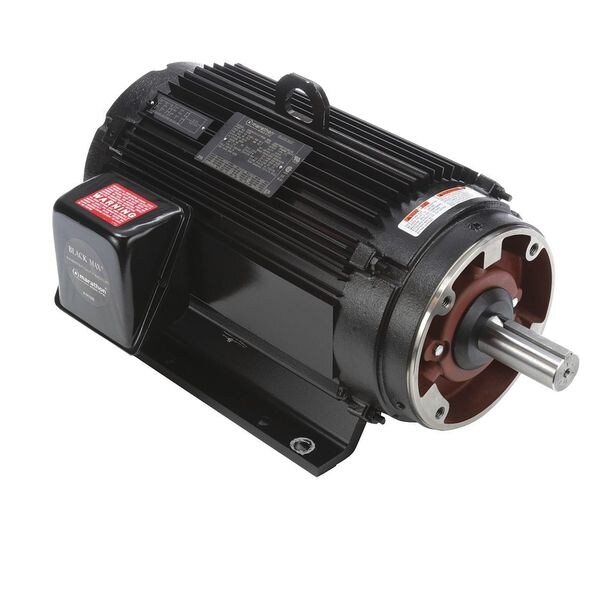

Vector Motor, 33.7 lb-ft, 7.5 HP, 230/460V
Mfr # 254THTL5776
Zoro # G1533831
product price:Â $4,498.99
/ea
Additional $200.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
HP
7 1/2
Torque
33.7 ft-lb
Nameplate RPM
1,170
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 254THTL5776
- Zoro #
- G1533831
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Shaft Length
- 3 3/4 in
- Overall Length
- 25 3/8 in
- Shaft Dia.
- 1 5/8 in
- Encoder Shaft Dimensions
- 5/8 in x 1 3/4 in
- Length Less Shaft
- 21 5/8 in
- Manufacturers Warranty Length
- 3 yr
- Shaft Diameter
- 1 5/8 in
- Encoder Shaft Diameter
- 5/8 in
- Encoder Shaft Length
- 1 3/4 in
- Frame Size
- 254TC
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 22.0/11.0 A, 254TC Frame, Torque 33.7 ft-lb, Max. Speed 1,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
