Shop MARATHON

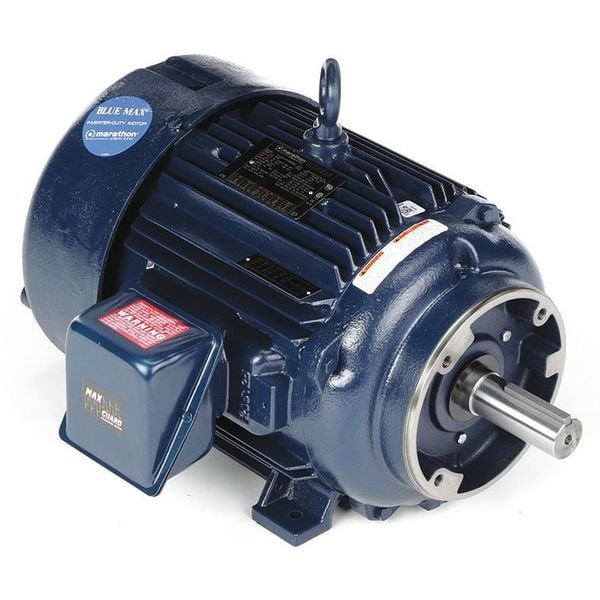

Vector Motor, 3-Phase, 15HP, 230/460V

  • Mfr # 254THFNA8038

  • Zoro # G9923033

product price:  $4,026.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
15
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254THFNA8038
Zoro #
G9923033
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 5/8 in
Overall Length
26 5/16 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Encoder Shaft Diameter
1 in
Frame Size
254TC
Shaft Diameter
1 5/8 in
Encoder Shaft Length
1 3/4 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
15
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
254TC
Voltage
230/460V AC
Motor Thermal Protection
T-Stat
Standards
CE, CSA, UL Recognized
Warranty
3 yr
Motor Application
Crane
Ins. Class
H
Motor Shaft Rotation
CW/CCW
Ambient Temperature
40 Degrees C
Frame Material
Cast Iron
Base
Rigid
Motor Frame Material
Cast Iron
NEMA Design
B
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Efficiency Group
Energy Efficient
Motor Bearings
Ball
Encoder Acceptable
Yes
Duty
Continuous
Hz
60 Hz
Max. Operating Frequency
90 Hz
Phase
Three
RPM Range
1,701-1,800
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Finish
Enamel
Motor Mounting Position
Horizontal
Motor Service Factor
1
Insulation Feature
Class F
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Motor Mounting Type
Rigid Base
Encoder Shaft
1 in x 1-3/4 in
Full Load Amps
37/18.5 A
Weight
350 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Max. Ambient Temp.
104 Degrees F
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Nameplate Service Factor @ 60 Hz
1
Manufacturers Warranty
3 yr
Inverter Rated
Inverter Rated
Bearing Type
Ball
Frequency
60 Hz
Shaft Design
Keyed
Insulation Class
H
NEMA Design Class
B
Efficiency Rating
NEMA Standard Efficiency
Maximum Speed
1,800 RPM
Product Type
Vector Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Maximum Operating Frequency
90 Hz
Frame Finish
Enamel-Coated
Full Load Current @ 60 Hz
37/18.5 A

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 37/18.5 A, 254TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
