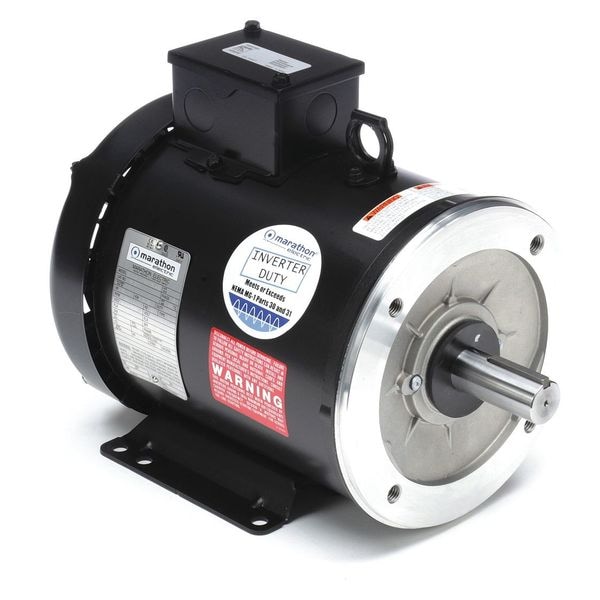

Vector Motor, 5 HP, 15 ft.-lb., 230/460V

  • Mfr # 184THFW7726

  • Zoro # G5820141

product price:  $1,347.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
5
Torque
15 ft-lb
Nameplate RPM
1,760
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184THFW7726
Zoro #
G5820141
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Overall Length
14 in
Shaft Length
2 7/8 in
Length Less Shaft
11 1/8 in
Shaft Diameter
1 1/8 in
Frame Size
184TC

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
5
Torque
15 ft-lb
Nameplate RPM
1,760
Speed Range
1,000:1
Max. Speed
4,200 RPM
Frame
184TC
Voltage
230/460V AC
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Efficiency Group
Energy Efficient
Motor Mounting Position
Horizontal
Full Load Amps
13.0/6.5 A
Duty
Continuous
Motor Shaft Design
Keyed
Phase
Three
RPM Range
1,701-1,800
Base
Bolt On
Motor Bearings
Ball
Motor Mounting Type
Rigid Base
Hz
60 Hz
NEMA Design
A
Motor Frame Material
Steel
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Encoder Acceptable
No
Ambient Temperature
40 Degrees C
Insulation Feature
CR200 Magnet Wire Class H
Motor Shaft Rotation
CW/CCW
Encoder Shaft
None
Motor Application
Crane
Ins. Class
H
Standards
CE, UL Recognized
Max. Operating Frequency
120 Hz
Motor Service Factor
1
Finish
Black
Nominal Efficiency
87.5 %
Frame Material
Steel
No. of Speeds
1
Weight
92 lb
Conduit Box Location
Exterior
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F3
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
NEMA Design Class
A
Bearing Type
Ball
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
13.0/6.5 A
Maximum Speed
4,200 RPM
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
H
Efficiency Rating
NEMA Energy Efficient
Maximum Operating Frequency
120 Hz
Inverter Rated
Inverter Rated
Product Type
Vector Motor

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.0/6.5 A, 184TC Frame, Torque 15 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
