Product Information
MFR #
143TTWR16026
Zoro #
G8499517
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
10 3/4 in
Body Dia.
6 1/2 in
Shaft Length
2 in
Overall Length
12 3/4 in
Shaft Dia.
7/8 in
Description

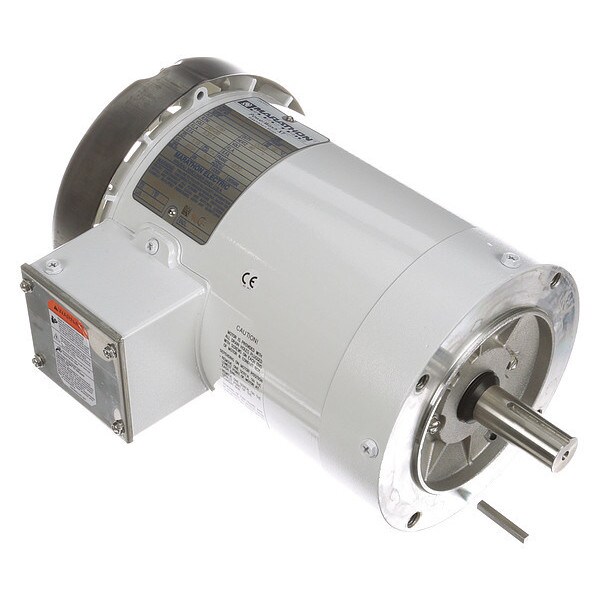

Washdown Motor, 3 Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1760, Voltage 230/460, Full Load Amps 3.2/1.6, 145TC Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel
