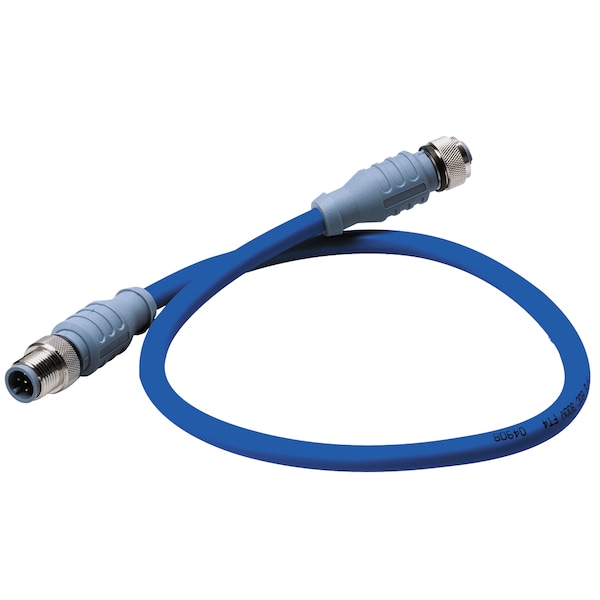

Mid Double-Ended Cordset-6M Blue
Mfr # DM-DB1-DF-06.0
Zoro # G5403274
product price:Â $67.55
/eaKey Features
Product Type
Double Ended
Cable Length
19.69 ft
Cable Jacket Material
PVC
Cable Jacket Color
Blue
Conductor Material
Copper
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
DM-DB1-DF-06.0
Zoro #
G5403274
UPC #
873804001951
Country of Origin
Mexico
Dimensions
Cable Length
19.69 ft
Details
Item
Cordset
Product Type
Double Ended
Cable Jacket Material
PVC
Cable Jacket Color
Blue
Conductor Material
Copper
Standards
IEC 61162-3, IEC IP68
Shielding
Yes
Connector Plating
Gold
Description
Maretron Mid Double-Ended Cordset - 6 M Blue. Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray, Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray, Contact Mat/Plating: Brass/Gold, Coupling Nut Mat/Plating: Brass/Nickel, Connector Outside Diameter: 0.59", Electrical , Current Rating: 4.0 Amps, Voltage Rating: 250 V, Cable , Outer Jacket Mat/Color: PVC/Gray, Conductor Insulation Material: PE (data pair), PVC (power pair), Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire , Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair), ENVIRONMENTAL , Protection Class: IEC IP68, NEMA 1,3,4,6P, Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F), APPROVALS , (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V, (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 , NMEA: NMEA 2000 Approved, IEC: IEC 61162-3.
