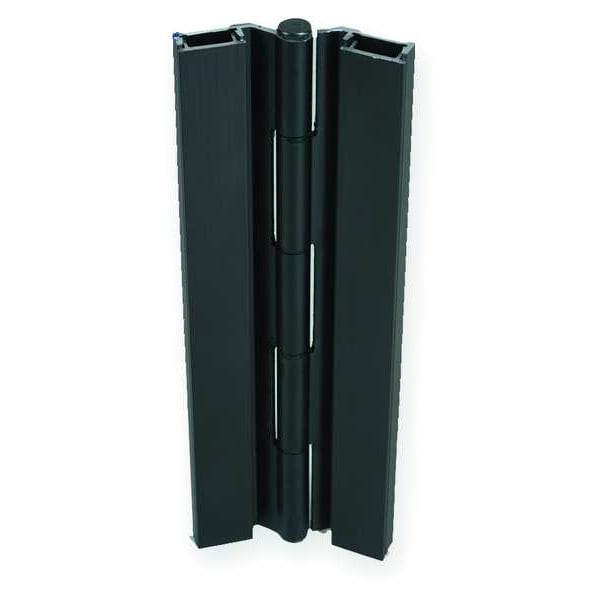

Piano Hinge, Aluminum Alloy, Full Surface Mounting, 1 5/8 in Leaf W x 7 ft Leaf H
Mfr # FS102-001-313
Zoro # G8340787
product price:Â
$
586.99
/ea
Free Shipping & Returns
Key Features
Door Leaf Height
7 ft
Door Leaf Thickness
0.438 in
Door Leaf Width
1 5/8 in
Holes per Leaf
0
Load Capacity
600 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FS102-001-313
- Zoro #
- G8340787
- UPC #
- -
- Country of Origin
- Mexico
- Finish
- Dark Bronze Anodized
- Holes per Leaf
- 0
- Load Capacity
- 600 lb
- Material
- Aluminum Alloy
- Mounting
- Full Surface
- Orientation
- Non Handed
- Range of Motion
- 180 Degrees
- Features
- Aluminum End Pins, Medical Bearings, No Exposed Mounting Fasteners, 1/8 in Inset, Not Fire Rated
- Item
- Piano Hinge
- Ligature Resistant
- No
- Pin Type
- Nonremovable
- Pin Material
- Stainless Steel
- Standards
- ANSI/BHMA A156.26 Grade 2
- Hardware
- Included
- Holes
- Without
- Bearing Type
- Split Nylon
- Color
- Dark Bronze
- Hand Orientation
- Non-Handed
- ANSI/BHMA Finish
- Oxidized Satin Bronze-Plated, Oil Rubbed
- Removable Pin
- No
- Includes Hardware
- Hardware Included
- Number of Holes per Leaf
- 0
- Resistance Properties
- Scratch-Resistant
- Range of Motion - Maximum
- 180 Degrees
Description
Piano Hinge, Ligature Resistant No, Aluminum Alloy Material, 180 Degrees Range of Motion, Dark Bronze Finish, Without Holes, 600 lb Load Capacity, Non Handed Orientation, 1 in Overall Knuckle Height, 7 ft Door Leaf Height, 7 ft Frame Leaf Height, 1 5/8 in Door Leaf Width, 1 5/8 in Frame Leaf Width, 0.438 in Door Leaf Thickness, 0.438 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Length 7 ft, Included Hardware, 0 Holes per Leaf, Full Surface Mounting, 1/4 in Pin Dia.
