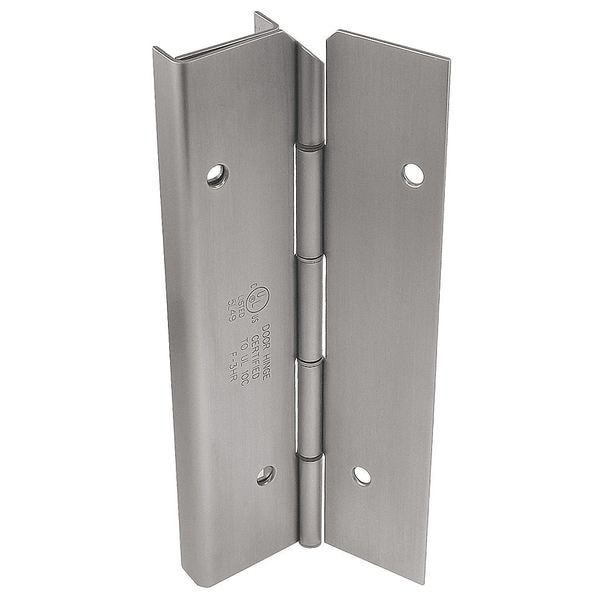

Piano Hinge, Stainless Steel, Full Mortise Mounting, 1 3/4 in Leaf W x 8 ft Leaf H
Mfr # HG305-002-630-HT-MP-LH
Zoro # G0124595
product price:Â
$
747.99
/ea
Free Shipping & Returns
Key Features
Material
Stainless Steel
Mounting
Full Mortise
Load Capacity
600 lb
Range of Motion
180 Degrees
Ligature Resistant
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HG305-002-630-HT-MP-LH
- Zoro #
- G0124595
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Door Leaf Width
- 1 3/4 in
- Door Leaf Height
- 8 ft
- Door Leaf Thickness
- 0.075 in
- Frame Leaf Width
- 1 3/4 in
- Frame Leaf Height
- 8 ft
- Frame Leaf Thickness
- 0.075 in
- Required Door Thickness
- 1-3/4 in
- Overall Width
- 4 1/2 in
- Overall Knuckle Height
- 2 in
- Length
- 96 in
- Pin Dia.
- 3/16 in
- Width
- 2-1/4"
- Door Thickness - Maximum
- 1 3/4 in
- Pin Diameter
- 3/16 in
- Door Thickness - Minimum
- 1 3/4 in
- Hinge Length
- 10 in
Description
Piano Hinge, Ligature Resistant Yes, Stainless Steel Material, 180 Degrees Range of Motion, Satin Stainless Steel Finish, With Holes, 600 lb Load Capacity, Left Hand Orientation, 2 in Overall Knuckle Height, 8 ft Door Leaf Height, 8 ft Frame Leaf Height, 1 3/4 in Door Leaf Width, 1 3/4 in Frame Leaf Width, 0.075 in Door Leaf Thickness, 0.075 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Length 96 in, Included Hardware, 6 in Hole Spacing, 24 Holes per Leaf, Full Mortise Mounting
