Shop MARS

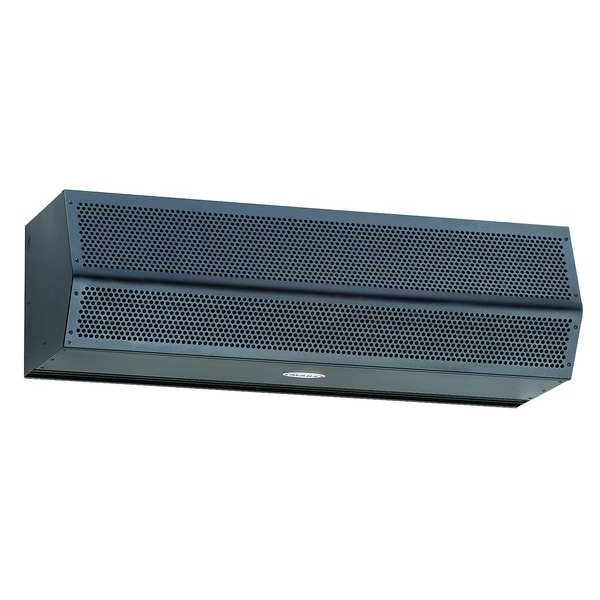

Air Curtain, Multipurpose, 42 In

  • Mfr # STD242-1UA-OB

  • Zoro # G4717876

product price:
$
1,058.99
/ea
Free Shipping & Returns

Key Features

Width
42 in
Phase
1
Max. Mounting Height
10 ft
Air Curtain Finish
Galvanized
Number of Motors
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
STD242-1UA-OB
Zoro #
G4717876
UPC #
094720641551
Country of Origin
United States
Item
Unhtd 10.7"H 42"W 13"D Steel Air Curtain
Phase
1
Air Curtain Finish
Galvanized
Number of Motors
1
Air Curtain Air Velocity
2925 fpm
Voltage
115
Air Curtain Air Volume
1418 cfm
Air Curtain dBA @ 10 Feet
66 dBA
Air Curtain Heated
No
Air Curtain Housing Material
Steel
Hz
60
Max. RPM
1,750 RPM
Standards
AMCA Certified
Motor Type
Permanent Split Capacitor
Max. Amps
5.1 A
Motor HP
1/2 hp
Number of Speeds
3
Air Curtain Item
Air Curtain
Housing Color
Black
Requires
Door Limit Switch
Motor Enclosure
Totally Enclosed Air Over
Control Type
Door Limit Switch
Finish
Galvanized, Powder Coated
Housing Material
Steel
Heated/Not Heated
Not Heated
Electrical Connection
Not Available
Washdown
No
Maximum Air Volume
1,418 cfm
Maximum Speed
1,750 RPM
Grille Material
Steel
Series
STD2 (Standard 2)
Frequency
60 Hz
For Outdoor Use
Not Available
Sanitation Certified
No
Full Load Current
5.1 A
Power Consumption
510 W
Includes Mounting Fasteners
Not Available
Drive Type
Direct Drive
Ultraviolet Air Cleaning
No
Sound Level @ 10 ft
66 dBA
Maximum Operating Temperature
Not Available
Maximum Air Velocity
4,865 fpm
Motor Horsepower per Motor
1/2 hp
Minimum Operating Temperature
Not Available
HEPA Air Cleaning
No
Profile Type
Standard Profile
Nameplate Voltage
115V AC
Assembly
Not Available
Hazardous Location Specification
Class I Group D
Type of Entrance
Front Customer Door, Drive-Up Window, Back Service Door

Description

Unhtd 10.7 In.H 42 In.W 13 In.D Steel Air Curtain, For Frame Opening Width 3 1/2 ft, Mounting Height for Temperature Control 12 ft, Overall Depth 13 in, Overall Height 10 5/8 in, Overall Width 42 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 4,865 fpm, Mounting Height for Insect Control 10 ft, Maximum Air Volume 1,418 cfm, Nameplate Voltage 115V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 66 dBA, Housing Color Black, Phase 1
