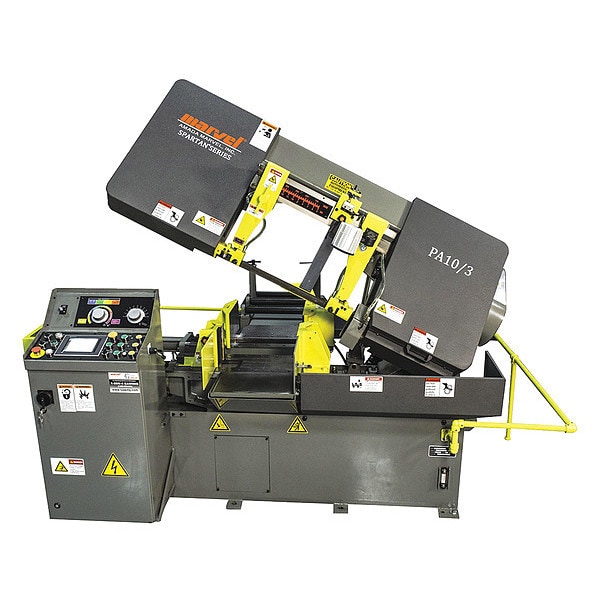

Band Saw, 8" x 11-1/4" Rectangle, 10" Round, 8 in Square, 230V AC V, 5 hp HP

Mfr # PA10/3MPC/230
Zoro # G3881480

54,454.99

Additional $415.00 delivery surcharge applies per item.

Key Features

Cutting Capacity Rectangle

8" x 11-1/4"

Cutting Capacity Round

10"

Cutting Capacity Square

8 in

Voltage

230V AC

5 hp

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PA10/3MPC/230
Zoro #: G3881480
UPC #: -
Country of Origin: Taiwan, Province of China

Dimensions

Max. Thickness of Cut: 10"
Max. Blade Length: 138 in
Blade Wheels Dia.: 14 in
Overall Height: 49 3/16 in
Overall Depth: 85 1/64 in
Table Dimensions: 11 1/2 in x 6 in
Max. Blade Width: 1 1/4 in
Min. Blade Length: 138 in
Min. Blade Width: 1 1/4 in
Overall Width: 86 1/8 in
Blade Thickness: 0.042 in
Blade Length: 11 ft 6 in

Details

Item: Band Saw
Cutting Capacity Rectangle: 8" x 11-1/4"
Cutting Capacity Round: 10"
Cutting Capacity Square: 8 in
Voltage: 230V AC
HP: 5 hp
Speeds: 70 to 330 fpm
Miter Capacity: 0 Degrees
Amps AC: 19.6 A
Corded/Cordless: Corded
Application: Metal Cutting
Hz: 60 Hz
Phase: 3
Cutting Angle: 90 Degrees
Features: Automatic Operation
Band Saw Operation: Automatic
Rectangular Cutting Capacity - Horizontal: 8 in x 11 1/4 in
Number of Speed Settings: Continuous
Miter Angle Range: 0 Degrees
SFPM Range: 70 to 330 SFPM
Round Cutting Capacity - Horizontal: 10 in
Band Saw Type: Horizontal
Material Application: Metal
Current: 19.6A
Power Source: Corded
Variable Speed: Yes
Power Source - TS Only: Corded
Power Source - old: Corded

Description

Band Saw, Band Saw Type Horizontal, Band Saw Operation Automatic, Voltage 230V AC, Phase 3, Rectangular Cutting Capacity - Horizontal 8 in x 11 1/4 in, Round Cutting Capacity - Horizontal 10 in, SFPM Range 70 to 330 SFPM, Miter Angle Range 0 Degrees , Number of Speed Settings Continuous, Material Application Metal, Blade Length 11 ft 6 in, Max. Blade Width 1 1/4 in, Min. Blade Width 1 1/4 in, Cutting Capacity Square 8 in, Power Source Corded, Blade Thickness 0.042 in, Blade Wheels Dia. 14 in
