Shop MASTERDRIVE
See all product information

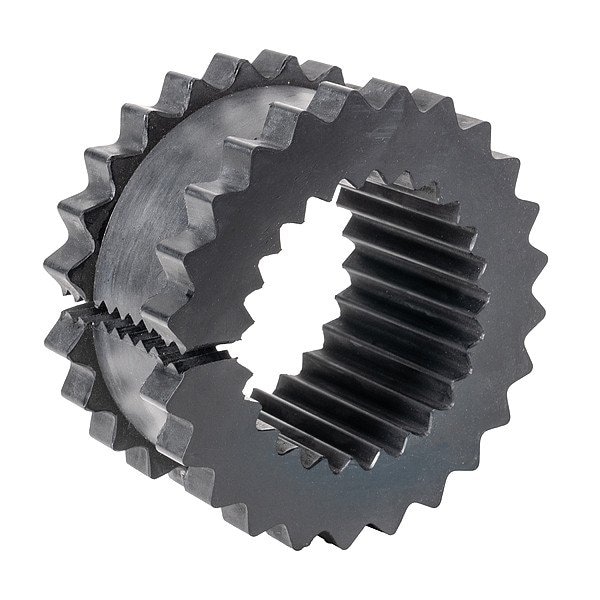

Coupling Sleeves
Mfr # 10JES
Zoro # G522902988
product price:Â $88.35
/eaKey Features
Angular Misalignment
1 Degrees
Insert Design
One-Piece Split
Flange Type - Sleeve Couplings
JES
Outside Diameter
7 1/16 in
Coupling Size
10
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
10JES
Zoro #
G522902988
UPC #
806372136176
Country of Origin
China
Dimensions
Outside Diameter
7 1/16 in
Coupling Size
10
Insert Width
3 7/16 in
Details
Angular Misalignment
1 Degrees
Insert Design
One-Piece Split
Flange Type - Sleeve Couplings
JES
Item
Sleeve Coupling Insert
Parallel Misalignment
0.025 in
Maximum Torque
2,875 in-lb
Insert Material
EPDM
Maximum Speed
3,600 RPM
Minimum Operating Temperature
-30 Degrees F
For Misalignment Type
Angular, Parallel
Torsional Stiffness
10,980 in-lb/rad
System of Measurement
Inch
Horsepower @ 100 RPM
5.9 hp
Maximum Operating Temperature
272 Degrees F
Weight
2.32 lb
Application
Prime Mover
Features
General Purpose, Torsional Flexibility is 15 Degrees , Wide Temperature Range
Axial Motion
0.025 in
Description
Coupling Sleeve, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 2,875 in-lb, Outside Diameter 7 1/16 in, Insert Construction - New 1-Piece Split, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 5.9 hp, Insert Material EPDM, Insert Width 3 7/16 in, Parallel Misalignment 0.025 in, System of Measurement Inch, Torsional Stiffness 10,980 in-lb/rad, Axial Motion 0.025 in, Application Prime Mover, Maximum Operating Temperature 272 Degrees F
