Shop MASTERDRIVE
See all product information

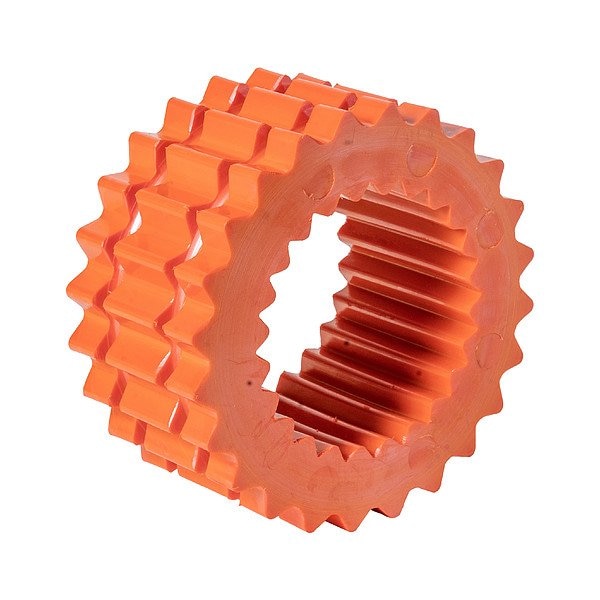

Coupling Sleeves
Mfr # 11HS
Zoro # G922903561
product price:Â $650.99
/ea
Free Shipping & Returns
Key Features
Maximum Speed
3,600 RPM
Insert Design
Two-Piece
Insert Material
Hytrel
Insert Width
4 in
Angular Misalignment
0.25 Degrees
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
11HS
Zoro #
G922903561
UPC #
806372142153
Country of Origin
China
Dimensions
Insert Width
4 in
Outside Diameter
8 3/16 in
Coupling Size
11
Details
Maximum Speed
3,600 RPM
Insert Design
Two-Piece
Insert Material
Hytrel
Angular Misalignment
0.25 Degrees
Parallel Misalignment
0.032 in
Maximum Torque
18,000 in-lb
Flange Type - Sleeve Couplings
HS
Item
Sleeve Coupling Insert
System of Measurement
Inch
Horsepower @ 100 RPM
29 hp
Application
Prime Mover
Minimum Operating Temperature
-65 Degrees F
Maximum Operating Temperature
250 Degrees F
Axial Motion
0.032 in
Torsional Stiffness
125,000 in-lb/rad
For Misalignment Type
Angular, Parallel
Description
Coupling Sleeve, Coupling Size 11, Maximum Speed 3,600 RPM, Maximum Torque 18,000 in-lb, Outside Diameter 8 3/16 in, Insert Construction - New 2-Piece, Angular Misalignment 0.25 Degrees , Horsepower @ 100 RPM 29 hp, Insert Material Hytrel, Insert Width 4 in, Parallel Misalignment 0.032 in, System of Measurement Inch, Torsional Stiffness 125,000 in-lb/rad, Axial Motion 0.032 in, Application Prime Mover, Maximum Operating Temperature 250 Degrees F, For Misalignment Type Angular, Parallel
