Shop MASTERDRIVE
See all product information

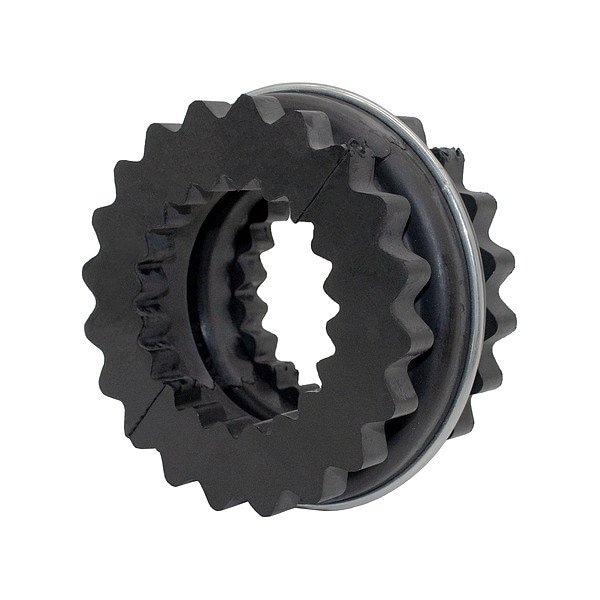

Coupling Sleeves
Mfr # 13N
Zoro # G922903295
product price:Â $992.99
/ea
Free Shipping & Returns
Key Features
Outside Diameter
11 3/16 in
Coupling Size
13
Insert Material
Neoprene
Maximum Torque
14,750 in-lb
Maximum Speed
2,400 RPM
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
13N
Zoro #
G922903295
UPC #
806372142399
Country of Origin
China
Dimensions
Outside Diameter
11 3/16 in
Coupling Size
13
Insert Width
5 1/2 in
Details
Insert Material
Neoprene
Maximum Torque
14,750 in-lb
Maximum Speed
2,400 RPM
Item
Sleeve Coupling Insert
Angular Misalignment
1 Degrees
Flange Type - Sleeve Couplings
N
Insert Design
Two-Piece
Parallel Misalignment
0.03 in
For Misalignment Type
Angular, Parallel
Features
Higher Resistance than EPDM, Torsional Flexibility is 15 Degrees
Weight
13 lb
Horsepower @ 100 RPM
23 hp
System of Measurement
Inch
Minimum Operating Temperature
0 Degrees F
Axial Motion
0.03 in
Torsional Stiffness
43,350 in-lb/rad
Maximum Operating Temperature
200 Degrees F
Resistance Properties
Oil Resistant
Application
Prime Mover
Description
Coupling Sleeve, Coupling Size 13, Maximum Speed 2,400 RPM, Maximum Torque 14,750 in-lb, Outside Diameter 11 3/16 in, Insert Construction - New 2-Piece, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 23 hp, Insert Material Neoprene, Insert Width 5 1/2 in, Parallel Misalignment 0.03 in, System of Measurement Inch, Torsional Stiffness 43,350 in-lb/rad, Axial Motion 0.03 in, Application Prime Mover, Maximum Operating Temperature 200 Degrees F
