Shop MASTERDRIVE
See all product information

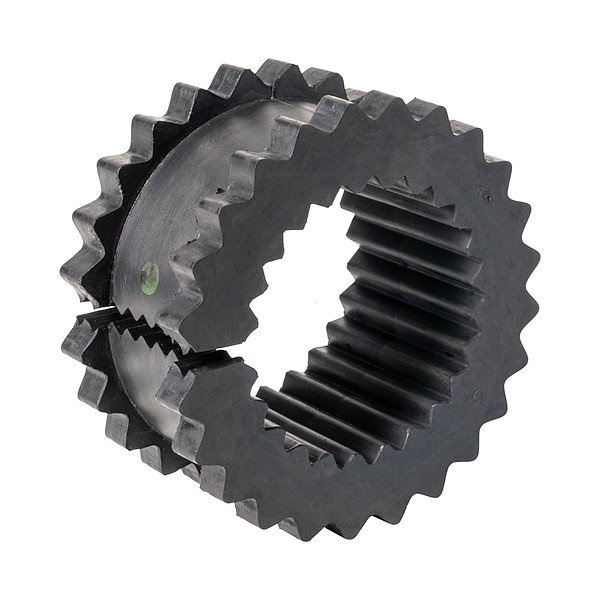

Coupling Sleeves
Mfr # 6JNS
Zoro # G122903682
product price:Â $35.35
/eaKey Features
Maximum Speed
6,000 RPM
Insert Material
Neoprene
Insert Design
One-Piece Split
Insert Width
1 7/8 in
Outside Diameter
3 3/4 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
6JNS
Zoro #
G122903682
UPC #
806372137166
Country of Origin
China
Dimensions
Insert Width
1 7/8 in
Outside Diameter
3 3/4 in
Coupling Size
6
Details
Maximum Speed
6,000 RPM
Insert Material
Neoprene
Insert Design
One-Piece Split
Flange Type - Sleeve Couplings
JNS
Angular Misalignment
1 Degrees
Item
Sleeve Coupling Insert
Maximum Torque
450 in-lb
Parallel Misalignment
0.015 in
Axial Motion
0.015 in
System of Measurement
Inch
Maximum Operating Temperature
200 Degrees F
Minimum Operating Temperature
0 Degrees F
Horsepower @ 100 RPM
0.7 hp
Torsional Stiffness
1,718 in-lb/rad
For Misalignment Type
Angular, Parallel
Application
Prime Mover
Description
Coupling Sleeve, Coupling Size 6, Maximum Speed 6,000 RPM, Maximum Torque 450 in-lb, Outside Diameter 3 3/4 in, Insert Construction - New 1-Piece Split, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 0.7 hp, Insert Material Neoprene, Insert Width 1 7/8 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Torsional Stiffness 1,718 in-lb/rad, Axial Motion 0.015 in, Application Prime Mover, Maximum Operating Temperature 200 Degrees F, For Misalignment Type Angular, Parallel
