Shop MASTERDRIVE
See all product information

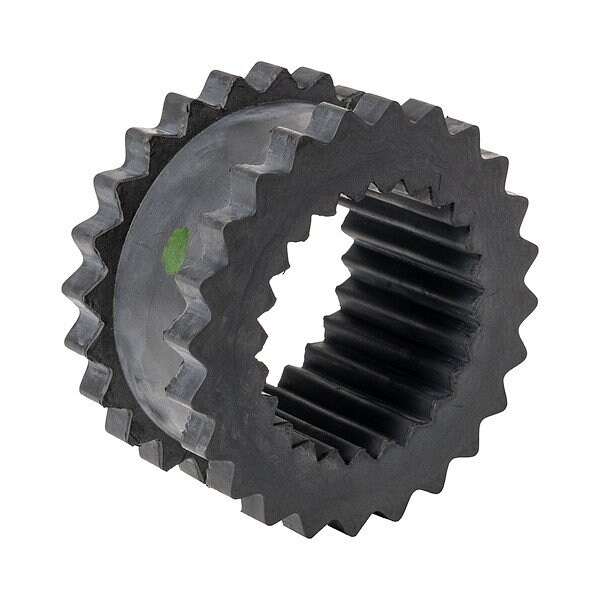

Coupling Sleeves
Mfr # 7JN
Zoro # G322903826
product price:Â $44.19
/eaKey Features
Parallel Misalignment
0.02 in
Flange Type - Sleeve Couplings
JN
Coupling Size
7
Insert Material
Neoprene
Maximum Speed
5,250 RPM
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
7JN
Zoro #
G322903826
UPC #
806372137111
Country of Origin
China
Dimensions
Coupling Size
7
Outside Diameter
4 11/32 in
Insert Width
2 3/16 in
Details
Parallel Misalignment
0.02 in
Flange Type - Sleeve Couplings
JN
Insert Material
Neoprene
Maximum Speed
5,250 RPM
Maximum Torque
725 in-lb
Angular Misalignment
1 Degrees
Insert Design
One-Piece Solid
Item
Sleeve Coupling Insert
Axial Motion
0.02 in
Weight
0.62 lb
Resistance Properties
Oil Resistant
Torsional Stiffness
2,769 in-lb/rad
For Misalignment Type
Angular, Parallel
System of Measurement
Inch
Horsepower @ 100 RPM
1.2 hp
Application
Prime Mover
Features
Higher Resistance than EPDM, Torsional Flexibility is 15 Degrees
Minimum Operating Temperature
0 Degrees F
Maximum Operating Temperature
200 Degrees F
Description
Coupling Sleeve, Coupling Size 7, Maximum Speed 5,250 RPM, Maximum Torque 725 in-lb, Outside Diameter 4 11/32 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 1.2 hp, Insert Material Neoprene, Insert Width 2 3/16 in, Parallel Misalignment 0.02 in, System of Measurement Inch, Torsional Stiffness 2,769 in-lb/rad, Axial Motion 0.02 in, Application Prime Mover, Maximum Operating Temperature 200 Degrees F
