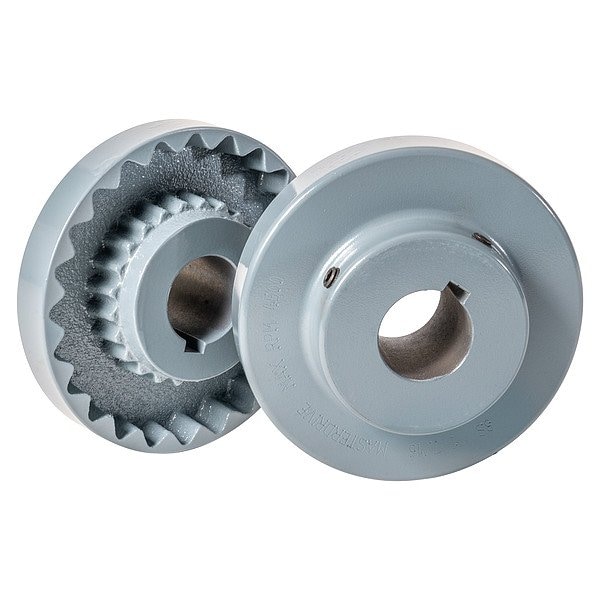

CouplngFlnge, 3-7/16"BoreDia, 2800RPMaxSpd
- Mfr # 12S-3-7/16
- Zoro # G223357599
product price:Â
$
271.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Hub Type
Flange Hub
Coupling Size
12
Number of Locking Screws
2
Hub Diameter
5 3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 12S-3-7/16
- Zoro #
- G223357599
- UPC #
- 806372141873
- Country of Origin
- China
Dimensions
- Coupling Size
- 12
- Hub Diameter
- 5 3/4 in
- Hub Body Length
- 1 11/16 in
- Coupling Overall Length
- 8 1/4 in
- Bore Diameter
- 3 7/16 in
- Keyway Width
- 7/8 in
- Screw Thread Size
- 3/8"-16
- Outside Diameter
- 10 in
- Keyway Depth
- 7/16 in
- Length through Bore
- 4 in
Details
- System of Measurement
- Inch
- Hub Type
- Flange Hub
- Number of Locking Screws
- 2
- Weight
- 26.6 lb
- Bushing Bore Range
- 1 5/8 to 3 7/8 in
- Hub Material Grade
- HT200
- Included Screws
- (2) Set Screw
- Features
- Exceptional Torsional Flexibility, Maintenance Free, Quick and Easy Installation
- Hub Material Finish
- Gray Paint
- Item
- Coupling Flange
- Bore Type
- Round Keyed
- Hub Projection
- 1 7/25 in
- Maximum Speed
- 2,800 RPM
Description
Coupling Flange, Coupling Size 12, Maximum Speed 2,800 RPM, Outside Diameter 10 in, Bore Type Round Keyed, Hub Diameter 5 3/4 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 3 7/16 in, Length through Bore 4 in, System of Measurement Inch, Hub Body Length 1 11/16 in, Hub Type Flange Hub, Bushing Bore Range 1 5/8 to 3 7/8 in, Coupling Overall Length 8 1/4 in, Features Exceptional Torsional Flexibility, Maintenance Free, Quick and Easy Installation
