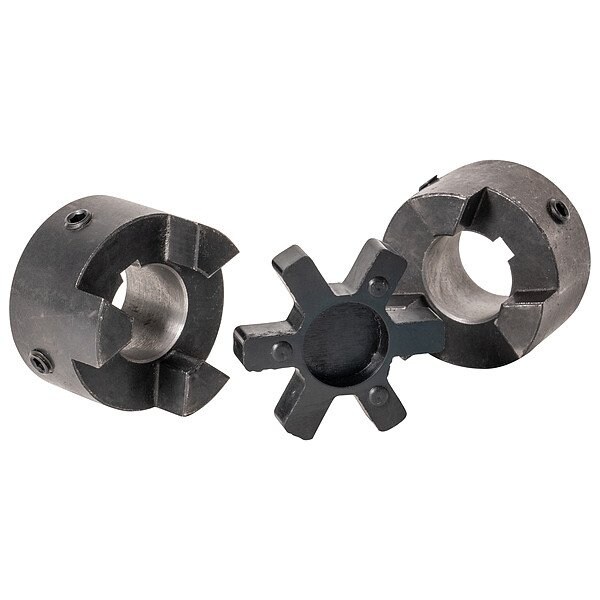

Jaw Coupling Hubs
- Mfr # L150-7/8
- Zoro # G222903230
product price:Â
$
69.99
/ea
Key Features
Bore Diameter
7/8 in
Screw Thread Size
3/8"-16
Hub Material Finish
Black Phosphate
Number of Locking Screws
2
Weight
3.95 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- L150-7/8
- Zoro #
- G222903230
- UPC #
- 806372027931
- Country of Origin
- China
- Hub Material Finish
- Black Phosphate
- Number of Locking Screws
- 2
- Weight
- 3.95 lb
- Item
- Jaw Coupling Hub
- Maximum Operating Temperature
- 450 Degrees F
- Bore Type
- Round Bore with Keyway
- Features
- No Metal-to-Metal Contact
- Maximum Speed
- 5,000 RPM
- System of Measurement
- Inch
- Included Screws
- (2) Set Screw
- Hub Material Grade
- HT200
- Recommended Hub Gap
- 0.9 in
- Application
- General Duty
- Fail Safe
- Yes
- Minimum Operating Temperature
- -60 Degrees F
Dimensions
- Bore Diameter
- 7/8 in
- Screw Thread Size
- 3/8"-16
- Keyway Width
- 3/16 in
- Hub Diameter
- 3 3/4 in
- Coupling Size
- L150
- Length through Bore
- 1.8 in
- Outside Diameter
- 3 3/4 in
- Minimum Bore Diameter
- 1/2 in
- Coupling Overall Length
- 4 1/2 in
- Maximum Bore Diameter
- 1 7/8 in
- Keyway Depth
- 3/32 in
- Fits Chest Size
- No Metal-to-Metal Contact
Description
Jaw Coupling Hub, Coupling Size L150, Outside Diameter 3 3/4 in, Coupling Overall Length 4 1/2 in, System of Measurement Inch, Hub Material Cast Iron, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM Not Applicable, Keyway Depth 3/32 in, Keyway Width 3/16 in, Bore Diameter 7/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Application General Duty, Screw Thread Size 3/8 In.-16, Fail Safe Yes, Features No Metal-to-Metal Contact, Hub Diameter 3 3/4 in
