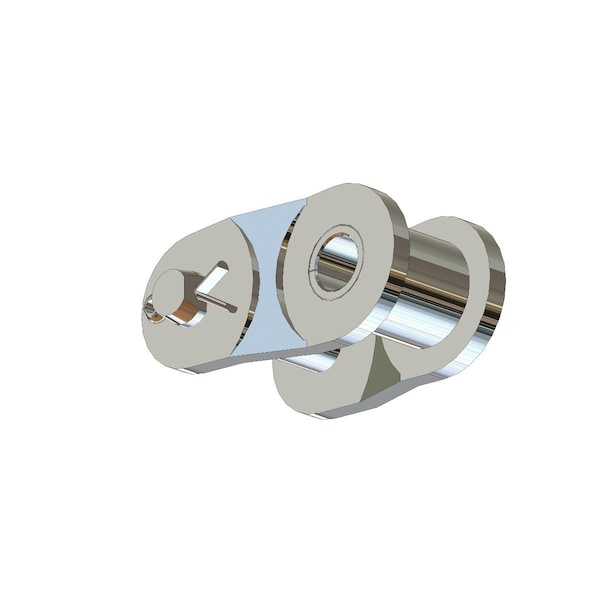

35Ss 304 Ss Ol Cp Type ASME/ANSI RllrChn SglStrd 3/8" Pit, 35Sshmol, PK5 (Discontinued)
- Mfr # 35SSHMOL
- Zoro # G0091649
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
35SSHMOL
Zoro #
G0091649
UPC #
821002012705
Country of Origin
Taiwan, Province of China
Dimensions
Industry Chain Size
35
Chain Roller Dia.
0.2
Chain Overall Width
0.65
Details
Roller Chain Item
Offset Link
Roller Chain Type
Standard Riveted
Number of Strands
1
Chain Material
Stainless Steel
Industry Chain Pitch
0.375"
Standards
ANSI
Rivet End to Center Line
0.26
Chain Type
External
Connecting End to Center Line
0.39
Max. Allowable Load
60
Chain Tensile Strength
1400
Description
SENQCIA Hi-Max 304 Stainless Steel offset Links are manufactured . They offer excellent resistance against many forms of chemical attack and operate in temperatures ranging from -250 to +750 degrees F. Offset links are supplied with “flatted” connecting pins and a split cotter for ease of assembly in the field. These special purpose links allow the user to make an endless strand of roller chain from an odd number of pitches. They are also used to reduce the length of a strand by one pitch when normal chain elongation has created excess catenary sag on a roller chain drive. Care however should be taken as the offset link has significantly less load carrying capacity than the base chain itself. Each offset link is individually packaged in a sealed plastic bag.
