Shop MAXLITE

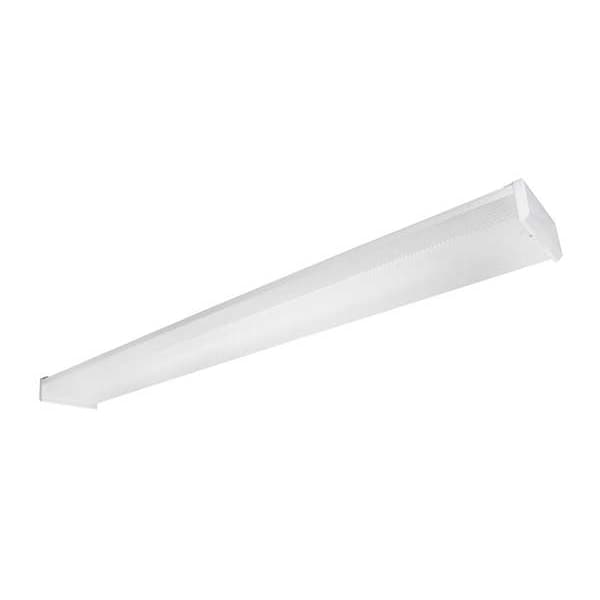

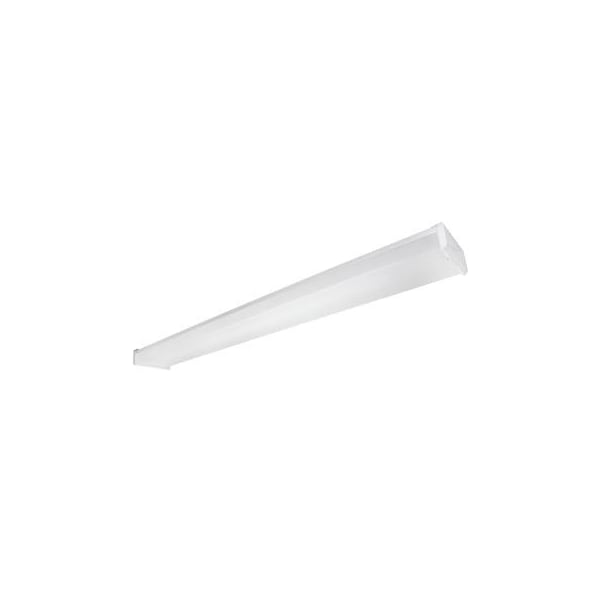

Lamp, LED, 2990/4550/6240 lm, 120 to 277V

  • Mfr # LSU4U23WCSCR

  • Zoro # G904417406

product price:  $84.89
/ea

Key Features

Light Technology
LED
LED Replacement For
(3) 32w T8 Linear Fluorescent
Voltage
120/277V AC
Lighting Certification
DLC 5.1 Premium
Color Temperature
3500K, 4000K, 5000K
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LSU4U23WCSCR
Zoro #
G904417406
UPC #
-
Country of Origin
China

Dimensions

Nominal Length
4 ft
Overall Width
6 1/2 in
Overall Length
48 5/8 in
Overall Height
2 1/2 in
Manufacturers Warranty Length
10 yr

Details

Light Technology
LED
LED Replacement For
(3) 32w T8 Linear Fluorescent
Voltage
120/277V AC
Lighting Certification
DLC 5.1 Premium
Color Temperature
3500K, 4000K, 5000K
Lumens
2,990 lm, 4,550 lm, 6,240 lm
Color Rendering Index
80
Dimmable
Yes
Controller Type
Relay
Series
LSU
Lumens per Watt
23 lm/W, 35 lm/W, 48 lm/W
Fixture Type
CR
Standards
cULus, ETL, FCC, RoHS Compliant, UL
Min. Ambient Temp.
-4 Degrees F
Lens Shape
Flat
Sensor Type
Occupancy Sensor Compatible
Item
LED Wraparound Fixture
Linkable
Yes
Max. Ambient Temp.
122 Degrees F
For Bulb Type
Integrated LED
Max. Fixture Wattage
48 W
Dimming Method
0-10V
Warranty
10 yr
Housing Material
Steel
Emergency Battery Backup
No
Bulb Included
Integrated LED
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Premium Listed
Mounting Style
Bracket, Suspended, Surface
Lumen Selectable
Selectable
Ambient Temperature - Minimum
-4 Degrees F
Color Selectable
Selectable
Light Color
Selectable White
Ambient Temperature - Maximum
122 Degrees F
Mounting Hardware Type
Drywall Anchor and Screw, Sensor Endcap, V-Hook
Maximum Fixture Wattage
48 W
Light Output
2,990 lm, 4,550 lm, 6,240 lm
Light Distribution Shape
Wide
Lighting Technology
LED
Linkable Up To
10 Fixtures
For Bulb Shape
Linear
Includes
Drywall Anchor and Screw, Sensor Endcap, V-Hook
Ballast Type
No Ballast Required
Housing Color
White

Description

4 ft, Lens Shape Flat, 3,500 K, 4,000 K, 5,000 K, 2,990 lm, 4,550 lm, 6,240 lm, 23 lm/W, 35 lm/W, 48 lm/W, Max. Fixture Wattage 48 W, LED, Sensor Type No Sensor, Mounting Style Bracket, Pendant, Surface, Suspended, Linkable Yes, For Bulb Type LED, LED Replacement For Equivalent to 3 x 32w T8 Linear Fluorescent, Bulb Included No, Dimmable Yes, LSU

Restrictions

This item has been restricted from sale in the following states: CA
