  9. 1-1/4" MNPT SPDT Snap Flow Switch 120/240VAC 7.7 gpm

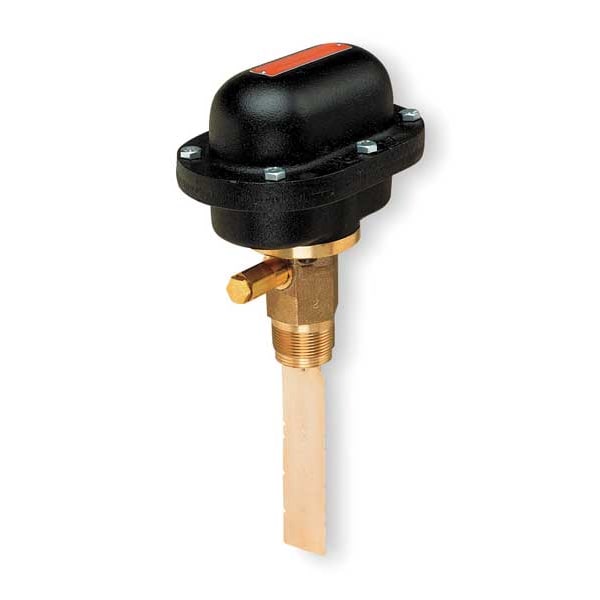

Mcdonnell & Miller 1-1/4" MNPT SPDT Snap Flow Switch 120/240VAC 7.7 gpm FS7-4E - main

1-1/4" MNPT SPDT Snap Flow Switch 120/240VAC 7.7 gpm

  • Mfr # FS7-4E

  • Zoro # G2774886

product price: $878.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1-1/4 MNPT
Switch Type
SPDT
Voltage
120/240VAC
Max. Pressure
300 psi
Max. Flow GPM
7.7 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FS7-4E
Zoro #
G2774886
UPC #
751875041833
Country of Origin
United States

Dimensions

Connection Size (In.)
1-1/4 MNPT
For Pipe Size
1 1/4 in, 16 in
Connection Size
1 1/4 in

Details

Switch Type
SPDT
Voltage
120/240VAC
Max. Pressure
300 psi
Max. Flow GPM
7.7 gpm
Item
Flow Switch
Max. Pressure (PSI)
300 psi
Switch Enclosure
NEMA 7/9
Min. Ambient Temp. (F)
32 Degrees
Application
Large Pipe Applications Including Heating and Hydronic Systems, Air-conditioning, Refrigeration and Process Work, Hazardous Environment Applications
Min. Flow Rate (GPM)
4.8 gpm
Wetted Materials
Brass, Bronze, PTFE, S/S
Max. Fluid Temp. (F)
300 Degrees F
Type
Industrial/Heavy-duty
Float Switch Contact Form
SPDT
Min. Fluid Temp. (F)
32 Degrees F
Media Temperature - Minimum
32 Degrees F
Flow Rate - Minimum
4.8 gpm
Housing Material
Brass
Set Point Configuration
Adjustable
Media Temperature - Maximum
300 Degrees F
Ambient Temperature - Minimum
32 Degrees F
Flow Switch Type
Paddle
Flow Rate - Maximum
4.8 gpm
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G
Ambient Temperature - Maximum
300 Degrees F
Wetted Material
Brass, Bronze, PTFE, Stainless Steel
Contact Rating (AC)
22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
Connection Type
NPT

Description

Flow Switch, Ambient Temperature - Maximum 300 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 1/4 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 4.8 gpm, Flow Rate - Minimum 4.8 gpm, Flow Switch Type Paddle, For Pipe Size 1 1/4 in, 16 in, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G
