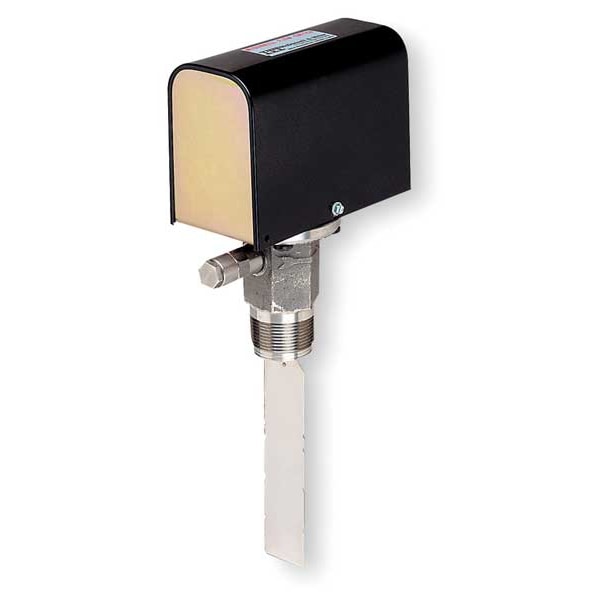

1-1/4" MNPT SPDT Snap Flow Switch 120/240VAC 7.7 gpm

Mfr # FS7-4S
Zoro # G1412275

$939.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Connection Size (In.) 1-1/4 MNPT
Switch Type SPDT
Voltage 120/240VAC
Max. Pressure 1000 psi
Max. Flow GPM 7.7 gpm

See all product information

Brand Mcdonnell & Miller
MFR # FS7-4S
Zoro # G1412275
UPC #
751875041802
Country of Origin United States
Category Level Switches

Dimensions

Connection Size (In.)	1-1/4 MNPT
Connection Size	1 1/4 in
For Pipe Size	1 1/4 in, 16 in

Details

Switch Type	SPDT
Voltage	120/240VAC
Max. Pressure	1000 psi
Max. Flow GPM	7.7 gpm
Switch Enclosure	NEMA 1
Application	Large Pipe Applications Including Heating and Hydronic Systems, Air-conditioning, Refrigeration and Process Work
Min. Fluid Temp. (F)	32 Degrees F
Max. Pressure (PSI)	1,000 psi
Wetted Materials	PTFE, S/S
Item	Flow Switch
Min. Flow Rate (GPM)	4.8 gpm
Type	Industrial/Heavy-duty
Max. Fluid Temp. (F)	300 Degrees F
Float Switch Contact Form	SPDT
Min. Ambient Temp. (F)	32 Degrees
Set Point Configuration	Adjustable
Ambient Temperature - Maximum	300 Degrees F
Media Temperature - Minimum	32 Degrees F
Ambient Temperature - Minimum	32 Degrees F
Wetted Material	PTFE, Stainless Steel
Flow Rate - Maximum	4.8 gpm
Contact Rating (AC)	22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
Flow Switch Type	Paddle
Media Temperature - Maximum	300 Degrees F
Connection Type	NPT
Flow Rate - Minimum	4.8 gpm
Housing Material	Brass

Description

Flow Switch, Ambient Temperature - Maximum 300 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 1/4 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 4.8 gpm, Flow Rate - Minimum 4.8 gpm, Flow Switch Type Paddle, For Pipe Size 1 1/4 in, 16 in, Housing Material Brass, Media Temperature - Maximum 300 Degrees F
