Shop MCDONNELL & MILLER

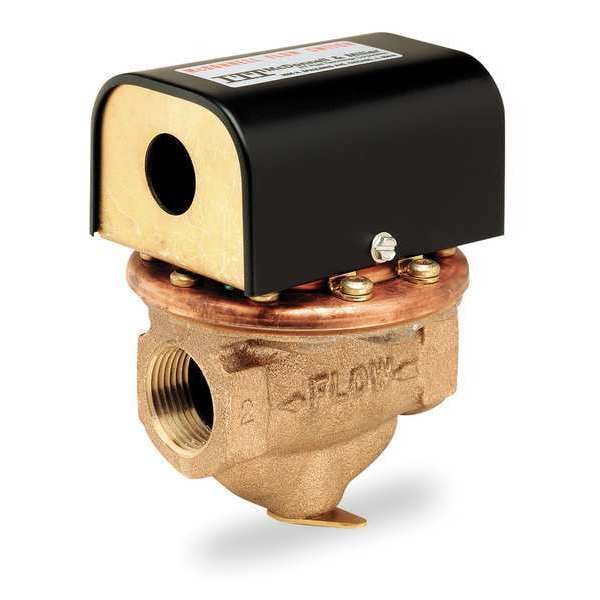

3/4" FNPT SPDT Snap Switch Flow Switch 2.5 gpm

  • Mfr # FS6-W-3/4

  • Zoro # G1911192

product price:
$
665.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
3/4 FNPT
Switch Type
SPDT
Max. Pressure
100 psi
Max. Flow GPM
2.5 gpm
Wetted Materials
Brass, Stainless Steel, Viton
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FS6-W-3/4
Zoro #
G1911192
UPC #
751875043288
Country of Origin
United States

Dimensions

Connection Size (In.)
3/4 FNPT
Overall Length
5 in
Connection Size
3/4 in
For Pipe Size
3/4 in
Wire Rope Length
5 in
Length
5 in

Details

Switch Type
SPDT
Max. Pressure
100 psi
Max. Flow GPM
2.5 gpm
Item
Flow Switch
Wetted Materials
Brass, Stainless Steel, Viton
Float Switch Contact Form
SPDT
Type
High Sensitivity
Switch Enclosure
NEMA 4X
Max. HP
Not Available
Max. Pressure (PSI)
100 psi
Min. Ambient Temp. (F)
32 Degrees
Min. Fluid Temp. (F)
32 Degrees F
Min. Flow Rate (GPM)
0.12 gpm
Application
Water Treatment Systems, Cooling Systems for Electronic Circuits, Compressors, Booster Pumps, Bearings and other Applications that Need Instant Switching
Max. Fluid Temp. (F)
225 Degrees F
Contact Rating (AC)
22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
Ambient Temperature - Maximum
225 Degrees F
Wetted Material
Brass, Stainless Steel, Viton
Media Temperature - Minimum
32 Degrees F
Connection Type
NPT
Flow Rate - Maximum
0.12 gpm
Ambient Temperature - Minimum
32 Degrees F
Set Point Configuration
Adjustable
Media Temperature - Maximum
225 Degrees F
Flow Rate - Minimum
0.12 gpm

Description

Flow Switch, Ambient Temperature - Maximum 225 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 3/4 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 0.12 gpm, Flow Rate - Minimum 0.12 gpm, For Pipe Size 3/4 in, Media Temperature - Maximum 225 Degrees F, Media Temperature - Minimum 32 Degrees F, Overall Length 5 in, Phase -
