  9. 1" MNPT SPDT Snap General Purpose Flow Switch 120/240VAC 131 gpm

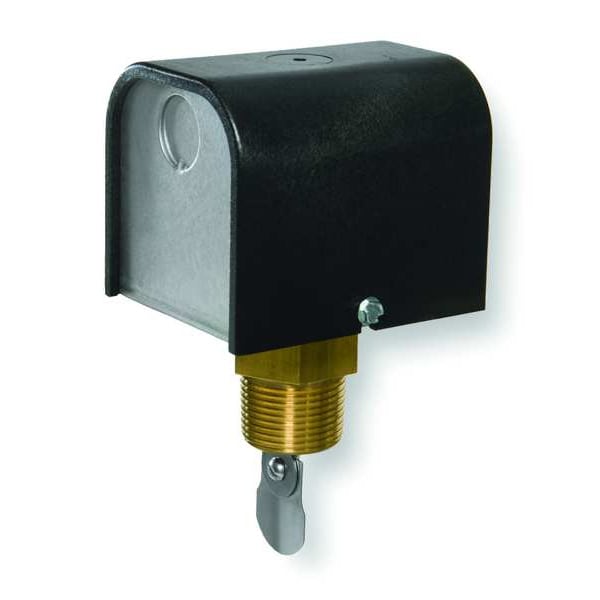

Mcdonnell & Miller 1" MNPT SPDT Snap General Purpose Flow Switch 120/240VAC 131 gpm FS251 - main

1" MNPT SPDT Snap General Purpose Flow Switch 120/240VAC 131 gpm

  • Mfr # FS251

  • Zoro # G2373856

product price: $206.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1 MNPT
Switch Type
SPDT
Voltage
120/240VAC
Max. Pressure
160 psi
Max. Flow GPM
131 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FS251
Zoro #
G2373856
UPC #
751875991251
Country of Origin
United States

Dimensions

Connection Size (In.)
1 MNPT
For Pipe Size
1 in, 6 in
Connection Size
1 in

Details

Switch Type
SPDT
Voltage
120/240VAC
Max. Pressure
160 psi
Max. Flow GPM
131 gpm
Item
General Purpose Switch
Min. Flow Rate (GPM)
5.8 gpm
Switch Enclosure
NEMA 1
Operating Velocity Range (FPM)
130 to 280
Min. Ambient Temp. (F)
32 Degrees
Application
Alarms, Automatic Burners and Metering Devices, Motors, Signal Lights
Contact Rating
120 VA @ 120 or 240 V AC - Pilot Duty, 7.4A @ 120 V AC - Full Load
Material of Construction
Brass, EPDM, Stainless Steel
For Use With
Water Systems
Min. Fluid Temp. (F)
32 Degrees F
Max. Fluid Temp. (F)
250 Degrees F
Body Material
Brass
Wetted Materials
Brass, EPDM, Stainless Steel
Max. Operating Velocity (FPM)
600 fpm
Float Switch Contact Form
SPDT
Max. Pressure (PSI)
160 psi
Connection Type
NPT
Flow Rate - Maximum
5.8 gpm
Wetted Material
Brass, EPDM, Stainless Steel
Ambient Temperature - Minimum
32 Degrees F
Flow Switch Type
Paddle
Ambient Temperature - Maximum
227 Degrees F
Media Temperature - Maximum
227 Degrees F
Media Temperature - Minimum
32 Degrees F
Housing Material
Brass
Set Point Configuration
Adjustable
Flow Rate - Minimum
5.8 gpm
Contact Rating (AC)
22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)

Description

General Purpose Switch, Ambient Temperature - Maximum 227 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 5.8 gpm, Flow Rate - Minimum 5.8 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, 6 in, Housing Material Brass, Media Temperature - Maximum 227 Degrees F
