Shop All Level Switches
Mcdonnell & Miller
Flow Switch, 1 In Nema
Mfr # FS8-W
Zoro # G0041791
Free Shipping & Returns
$248.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Switch Type SPDT
- Fits Brand Mcdonnell and Miller

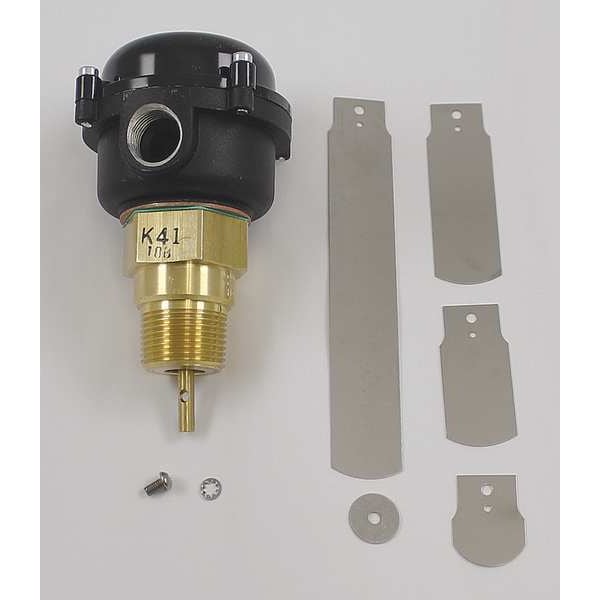

- Includes (1) Swtich, (2) Washers and (1) Screw, (4) Paddles
- Switch Enclosure NEMA 4X
- Standards cULus Approved
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Mcdonnell & Miller
- MFR # FS8-W
- Zoro # G0041791
- UPC # 751875000939
- Country of Origin United States
- Category Level Switches
Dimensions
Overall Length | 3.3 in |
Overall Height | 8.4 in |
Connection Size | 1 in |
For Pipe Size | 1 in |
Overall Width | 3.3 in |
Details
Switch Type | SPDT |
Fits Brand | Mcdonnell and Miller |
Includes | (1) Swtich, (2) Washers and (1) Screw, (4) Paddles |
Item | Flow Switch |
Switch Enclosure | NEMA 4X |
Standards | cULus Approved |
Product Type | Flow Switch, 1" Nema |
Wetted Material | Brass, Stainless Steel |
Media Temperature - Minimum | 32 Degrees F |
Media Temperature - Maximum | 225 Degrees F |
Flow Rate - Maximum | 17.6 gpm |
Flow Switch Type | Paddle |
Connection Type | NPT |
Ambient Temperature - Minimum | 32 Degrees F |
Contact Rating (AC) | 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load) |
Flow Rate - Minimum | 4.9 gpm |
Set Point Configuration | Adjustable |
Description
Flow Switch, 1 In. Nema, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 17.6 gpm, Flow Rate - Minimum 4.9 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, Media Temperature - Maximum 225 Degrees F, Media Temperature - Minimum 32 Degrees F, Overall Height 8.4 in, Overall Length 3.3 in, Overall Width 3.3 in
Restrictions
- *** This is a restricted item. It cannot be used in the USA for potable water applications.
