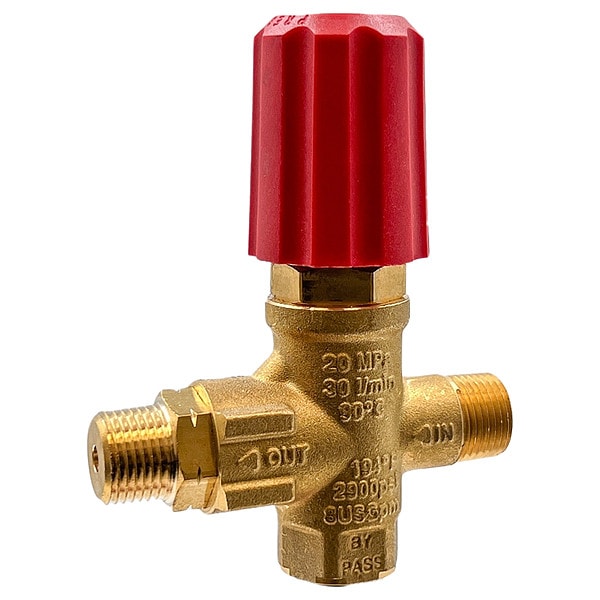

Unloader Valve, 8 gpm, 2900 psi, Brass

  • Mfr # VR54-200
  • Zoro # G6084897

product price:
$
63.99
/ea

Key Features

Body Material
Brass
Max. Fluid Temp. (F)
194 Degrees F
Max. Pressure (PSI)
2,900 psi
Bypass Port (In.)
3/8 (F)NPT
Type
High Pressure
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VR54-200
Zoro #
G6084897
UPC #
-
Country of Origin
Italy
Body Material
Brass
Item
Unloader Valve
Max. Fluid Temp. (F)
194 Degrees F
Max. Pressure (PSI)
2,900 psi
Bypass Port (In.)
3/8 (F)NPT
Type
High Pressure
Application
High Pressure Water
Characteristics
Trap Pressure Unloader
Flow Range (GPM)
0.5 to 8
Inlet Port (In.)
3/8 (M)NPT
Factory Set Pressure
2,900 psi
Wetted Materials
Brass, Stainless Steel
Max. Flow GPM
8
Outlet Port (In.)
3/8 NPT(M)
Function
Safety
Pressure Range (PSI)
500 to 2900
Flow Rate - Minimum
0.5 gpm
ASME Section Code
Non-Code
Valve Type
High Pressure
Flow Rate - Maximum
8 gpm
Operating Pressure - Minimum
1,000 psi
Operating Pressure - Maximum
2,900 psi
For Media
Water
Outlet Connection Gender
Male
Outlet Connection Type
NPT
Bypass Connection Gender
Female
Fluid Temperature - Maximum
194 Degrees F
Bypass Connection Type
NPT

Dimensions

Height (In.)
3 45/64 in
Overall Height
3 11/16 in
Bypass Connection Size
3/8 in
Outlet Connection Size
3/8 in

Description

Unloader Valve, High Pressure, Max. Flow GPM 8, Flow Range (GPM) 0.5 to 8, Pressure Range (PSI) 500 to 2900, Max. Fluid Temp. (F) 194 Degrees , Body Material Brass, Wetted Materials Brass/Stainless Steel, Inlet Port (In.) 3/8 (M)NPT, Outlet Port (In.) 3/8 (M)NPT, Bypass Port (In.) 3/8 (F)NPT, Max. Pressure (PSI) 2900, Height (In.) 3-45/64, Safety, Application High Pressure Water, Trap Pressure Unloader
