  11. 3" X 1-1/4" Non-Marking Swivel Caster, Directional Lock, Loads Up To 165 lb

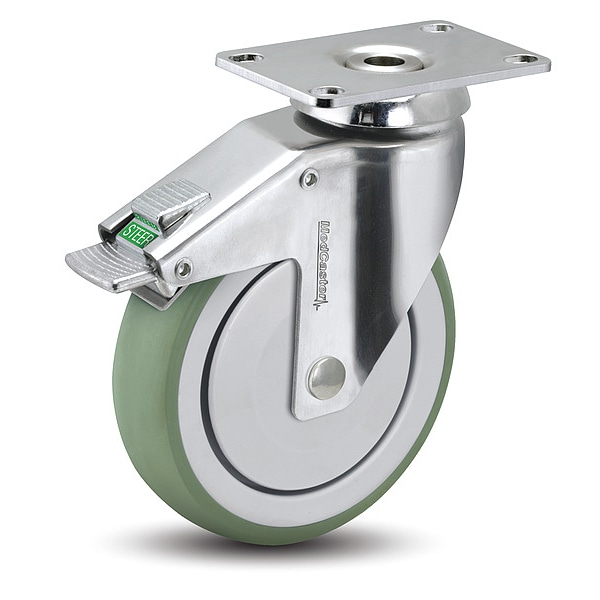

Medcaster 3" X 1-1/4" Non-Marking Swivel Caster, Directional Lock, Loads Up To 165 lb SS03AMX125DLTP01 - main

3" X 1-1/4" Non-Marking Swivel Caster, Directional Lock, Loads Up To 165 lb

  • Mfr # SS03AMX125DLTP01

  • Zoro # G7809237

product price: $96.89
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
Directional Lock
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SS03AMX125DLTP01
Zoro #
G7809237
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
113MM
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Bolt Dia.
5/16 in

Details

Item
Swivel Caster with Directional Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
Directional Lock
Load Rating
165 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Grey
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Caster Plate Hole Pattern
C
Operating Temperature Range
-30 Degrees to 210 Degrees F
Frame Finish
Chrome
Swivel Raceway Type
Double Ball
Application
Case Carts, Lab Equipment, Pharma Equipment, Surgical Tables
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Swivel Lock Type
Directional Lock
Series
stainless steel
Load Rating Range
0 to 299 lb
Wheel Core Material
Polypropylene
Caster Stem Type
Top Plate
Includes Thread Guards
Yes
Frame Color
Silver
Load Capacity - Maximum
165 lb

Description

Swivel, Plate Caster, Load Rating 165 lb, Swivel Lock Type Directional Lock, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
