Shop MEDCASTER

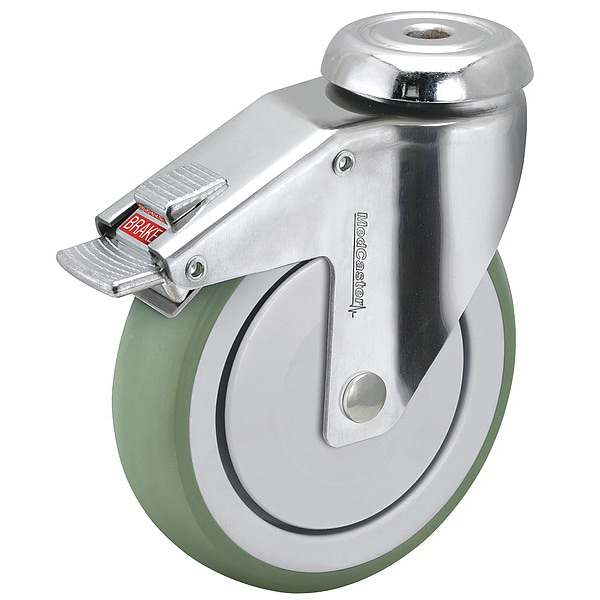

4" X 1-1/4" Non-Marking Swivel Caster, Total Lock Brake, Loads Up To 190 lb

  • Mfr # SS04AMX125TLHK01

  • Zoro # G7252848

product price:
$
90.69
/ea

Key Features

Caster Sub-Type
Swivel
Load Rating
190 lb
Wheel Dia.
4 in
Wheel Width
1 1/4 in
Wheel/Tread Material
Rubber Thermoplastic Anti-Microbial
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS04AMX125TLHK01
Zoro #
G7252848
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
135MM
Overall Height
5 3/10 in
For Axle Dia.
3/8 in
Tire Thickness
1/4 in
Bolt Hole Dia.
1/2 in

Details

Item
Stem Caster W/ Total Lock Brake
Caster Sub-Type
Swivel
Load Rating
190 lb
Wheel/Tread Material
Rubber Thermoplastic Anti-Microbial
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Stainless Precision
Caster Brake Type
Total Lock Brake
Swivel Lock Type
Total Lock Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Polished
Caster Frame Material
Stainless Steel
Wheel Core Material
Nylon
Core Color
Grey
Application
Case Carts, Lab Equipment, Pharma Equipment, Surgical Tables
Swivel Raceway Type
Double Ball
Series
stainless steel
Operating Temperature Range
-30°F to 210°F
Includes Thread Guards
Yes
Caster Mounting Type
Hollow Kingpin
Load Rating Range
0 to 299 lb
Caster Stem Type
Hollow King Pin
NSF Listed
No
Tread Shape
Standard
Replacement Wheel
SS-04HSP-125-06
Wheel/Tread Hardness
85(+/-5)
Includes Mounting Fasteners
No
System of Measurement
Inch
Caster Features
Antimicrobial, Corrosion-Resistant
Compatible Wheel Manufacturer Model Number
SS-04HSP-125-06
Operating Temperature - Minimum
250 Degrees F
Load Capacity - Maximum
190 lb
Operating Temperature - Maximum
-30 Degrees F
Wheel Hardness Rating
85 Shore A

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., Stainless Steel Caster Frame Material, Polished Frame Finish, 0 to 299 lb Load Rating Range, 190 lb Load Rating, 1 Number of Wheels, Ball, 5 3/10 in Mounting Height, 4 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
