  9. DigitalClampMeter, TRMS, 1500A, 1000VAC
Megger DigitalClampMeter, TRMS, 1500A, 1000VAC DCM1500S - main

DigitalClampMeter, TRMS, 1500A, 1000VAC

  • Mfr # DCM1500S

  • Zoro # G414546603

product price: $617.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 1000V, CAT IV 600V
Jaw Opening
1.65 in
Manufacturers Warranty Length
3 yr
Basic AC Voltage Accuracy
+/-1%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCM1500S
Zoro #
G414546603
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Overall Height
10 in
Maximum Conductor Size
1.65 in
Battery Size
AA
Overall Width
2.4 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 1000V, CAT IV 600V
Jaw Opening
1.65 in
Basic AC Voltage Accuracy
+/-1%
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Minimum Capacitance Measurement
100 uF
Battery Access
Yes
Resistance Measurement Accuracy
+/-0.9% + 5 Digits
DC Current Measurement Resolution
0.01 A
Frequency Measurement Resolution
0.01 Hz
Maximum Capacitance Measurement
1,000 uF
Minimum Operating Temperature
14 Degrees F
Battery Chemistry
Alkaline
Capacitance Measurement Accuracy
+/-1.9% + 2 Digits
Maximum AC Current Measurement
1,500 A
Dustproof
No
Maximum Frequency Measurement
10 kHz
Minimum Storage Temperature
-4 Degrees F
Diode Test
Yes
Display Type
LED
Basic DC Current Accuracy
+/-2%
Current Leakage Testing
No
Minimum Resistance Measurement
0.1 ohm
Inrush Current Measurable
Yes
Logging Memory
1,000
Basic DC Voltage Accuracy
+/-0.7% + 2 Digits
Thermal Imaging
No
Waterproof
No
Resistance Measurement Resolution
0.1 ohm
Minimum DC Current Measurement
60 A
Capacitance Measurement Resolution
0.1 uF
Frequency Counter
100 Hz to 10 kHz
Maximum Resistance Measurement
600 ohm
Special Features
Solar Diode Testing
Jaw Style
Clamp On

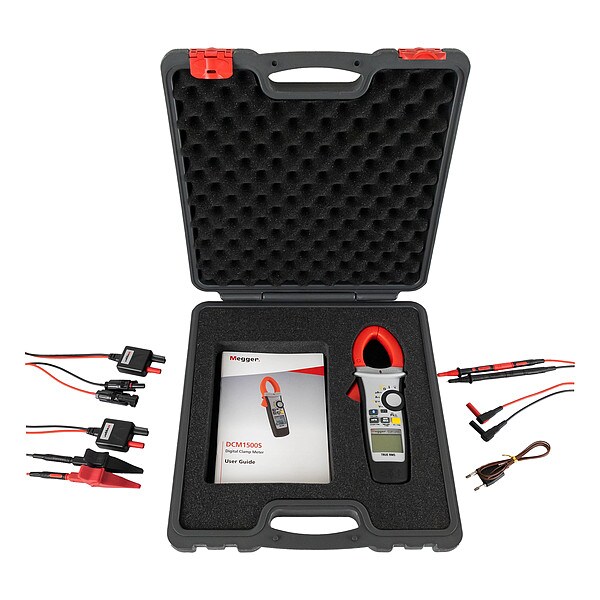

Includes
DCM 4mm Lead Set, Hard Carry Case, PVHV1 Lead (4 mm Plugs), PVHV2 Lead (PV Plugs), TP100 K-Type Thermocouple Probe
Instrument Counts
6,000
Minimum AC Current Measurement
60 A
Memory
Max/Min
Intrinsically Safe
No
AC Current Measurement Resolution
0.01 A
Batteries Included
Yes
Data Hold
Yes
Auto Power Off
Yes
Data Logging
Yes
Non-Contact Voltage Detector
Yes
Maximum AC Voltage Measurement
1,000 V
Frequency Measurement Accuracy
+/-0.3% + 3 Digits
AC Voltage Measurement Resolution
0.1 V
AC Response Calculation
TRMS
Calibration Certificate Included
No
Standards
IEC 61010-1, IEC//EN61010-2-033
Bluetooth Compatible
Yes
Basic AC Current Accuracy
+/-2%
Audible Continuity
Yes
Maximum DC Current Measurement
1,500 A
Removable Screen
No
Auto Ranging
Yes
Maximum Storage Temperature
140 Degrees F
Minimum AC Voltage Measurement
100 mV
Minimum Frequency Measurement
100 Hz
Maximum DC Voltage Measurement
1,000 V
Minimum DC Voltage Measurement
100 mV
DC Voltage Measurement Resolution
0.1 V

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,500 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,500 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No
