This item is Discontinued.

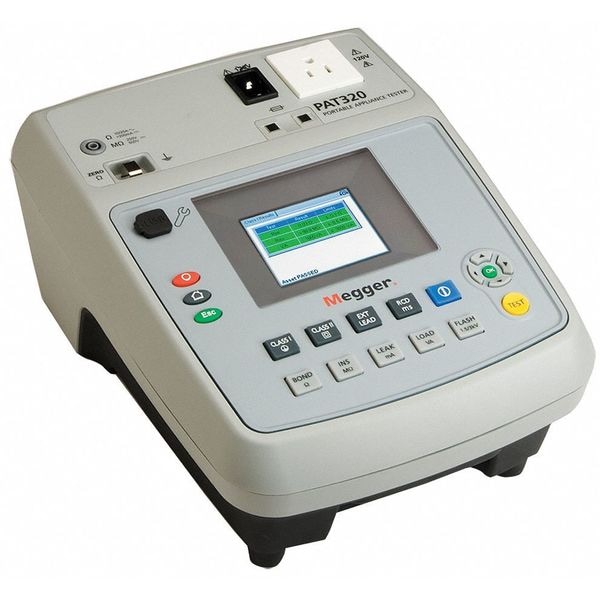

Megger Portable Appliance Tester, 250 & 500VDC PAT320-US

Portable Appliance Tester, 250 & 500VDC (Discontinued)

  • Mfr # PAT320-US
  • Zoro # G8476352
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PAT320-US
Zoro #
G8476352
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr

Details

Item
Portable Appliance Tester
Leakage Current Range
0 to 19.99 mA
Insulation Resistance Range
99 megohm
Display
QVGA
Includes
Combined Earth-Bond and Insulation Test Lead, Adaptor for Testing Extension Leads, Carrying Case, Lead Storage
Measures
Ground Bond Integrity, Insulation Resistance And Ground Leakage
Current Range
10 mA to 200 mA
Insulation Resistance Test Voltage
250V DC, 500V DC
Special Features
Can Test Extension Cords, Standard Insulation And Ground Bond Tests Are Performed With An Additional Polarity Test To Ensure That The Cord Is Wired Correctly
Power Source
120V AC, 60 Hz
Standards
IEC
Display Type
Digital
Minimum Current Measured
10 mA
Current Accuracy
+/-5.00%
Maximum Resistance Measured
19.99 ohm
Insulation Resistance Measured
0 to 99.99 megaohm
Features
Simple Manual or Automatic Testing, Tests Portable RCDs and Extension Leads
Maximum AC Voltage Measured
120 V
Display Screen Type
LCD
Leakage Current Measured
0 to 19.99 mA
Testing Functions
Earth/Ground Bond, Insulation Resistance, Leakage
Maximum Current Measured
200 mA
Tester Type
General Purpose Tester
CAT Safety Rating
CAT II 300V
Operating Voltage
110/230V

Description

Portable Appliance Tester, CAT Safety Rating CAT II 300V, Display Type Digital, Insulation Resistance Test Voltage 250V DC, 500V DC, Leakage Current Measured 0 to 19.99 mA, Maximum AC Voltage Measured 120 V, Maximum Current Measured 200 mA, Maximum Resistance Measured 19.99 ohm, Minimum Current Measured 10 mA, Operating Voltage 110/230V, Power Source 120V AC, 60 Hz, Tester Type Portable Appliance Tester, Testing Functions Ground Bond Integrity, Ground Leakage, Insulation Resistance
