  6. 22-14075-R RECEPTACLE NORMALLY CLOSED LID

This item is Discontinued.

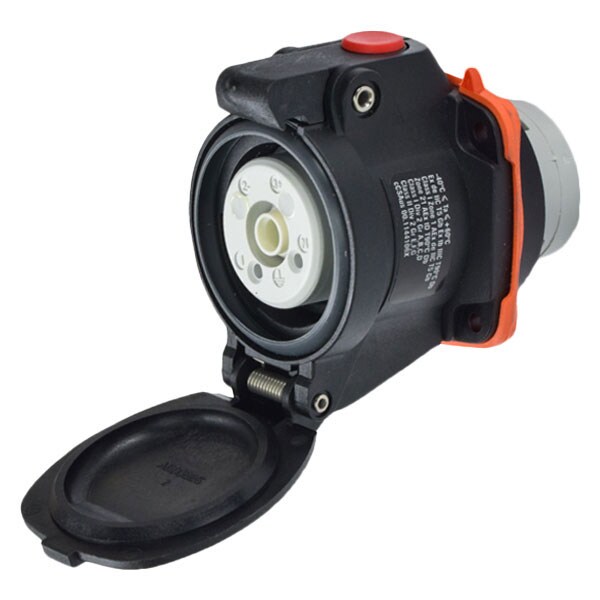

Meltric 22-14075-R RECEPTACLE NORMALLY CLOSED LID 22-14075-R

22-14075-R RECEPTACLE NORMALLY CLOSED LID (Discontinued)

  • Mfr # 22-14075-R
  • Zoro # G901755969
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22-14075-R
Zoro #
G901755969
UPC #
784474637862
Country of Origin
United States

Dimensions

Accessory Size
1

Details

Material
Poly
Color
Black
Number of Notch Positions
24
Primary IP Rating
66/67
Minimum Operating Temperature
-40F (-40C)
Impact Rating
IK08
Wiring Capacity
16 AWG - 10 AWG
Rated Current
20A
Phase Cond. Strip Len.
1/2 in (13 mm)
Load Break, Abnormal Overload
30A
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Voltage Color Code
Orange
Maximum Operating Temperature
140F (60C)
Phase Terminal Type
Screw terminal
Load Break, Normal Operation
20A
Wire Temperature Rating
60C
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-13
Contact Configuration
1P+N+G
Phase Terminal Tightening Torque
7.1 IN-LBS / 0.8 N-M
Keying Position
7
Short Circuit Rating, Fusing
25 KA 30A (400%) RK1 NTD
Rated Voltage
125 VAC
Horsepower Rating
0.75HP
Frequency
60 Hz

Description

DXN20 RECEPTACLE POLY BLACK SIZE 1 IP 66/67 1P+N+G 20A 125 VAC 60 Hz NORMALLY CLOSED LID
