  6. 22-34047-972-843-R RECEPTACLE PADLOCK PAWL NORMALLY CLOSED LID

This item is Discontinued.

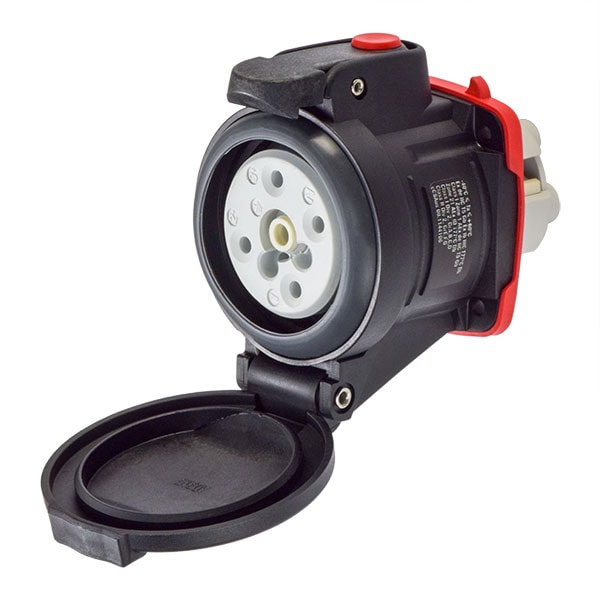

Meltric 22-34047-972-843-R RECEPTACLE PADLOCK PAWL NORMALLY CLOSED LID 22-34047-972-843-R

22-34047-972-843-R RECEPTACLE PADLOCK PAWL NORMALLY CLOSED LID (Discontinued)

  • Mfr # 22-34047-972-843-R
  • Zoro # G701755916
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
22-34047-972-843-R
Zoro #
G701755916
UPC #
784474628853
Country of Origin
United States

Dimensions

Accessory Size
2

Details

Material
Poly
Color
Black
Keying Position
4
Aux. Terminal Tightening Torque
7 IN-LBS / 0.8 N-M
Horsepower Rating
10HP
Aux. Pilot Contact Current Rating
5A
Aux. Terminal Wiring Capacity
14 AWG - 10 AWG
Wire Temperature Rating
60C
Load Break, Abnormal Overload
45
Number of Notch Positions
24
Minimum Operating Temperature
-40F (-40C)
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Short Circuit Rating, Fusing
25 KA 70A (400%) RK1 NTD
Auxiliary Terminal Type
Screw
Frequency
60 Hz
Primary IP Rating
66/67
Phase Cond. Strip Len.
13/16 in (20 mm)
Maximum Operating Temperature
140F (60C)
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-13
Aux. Contact Max. Voltage Rating
550VAC
Wiring Capacity
14 AWG - 6 AWG
Phase Terminal Tightening Torque
10.6 IN-LBS / 1.2 N-M
Contact Configuration
3P+N+G
Phase Terminal Type
Screw terminal
Load Break, Normal Operation
30A
Voltage Color Code
Red
Aux. Cond. Strip Len.
43/64 in (17 mm)
Rated Current
30A
Rated Voltage
277/480 VAC
Impact Rating
IK08
Number of Auxiliary Contacts
+2 AUX

Description

DXN30 RECEPTACLE POLY BLACK SIZE 2 IP 66/67 3P+N+G 30A 277/480 VAC 60 Hz +2 AUX PADLOCK PAWL NORMALLY CLOSED LID
