This item is Discontinued.

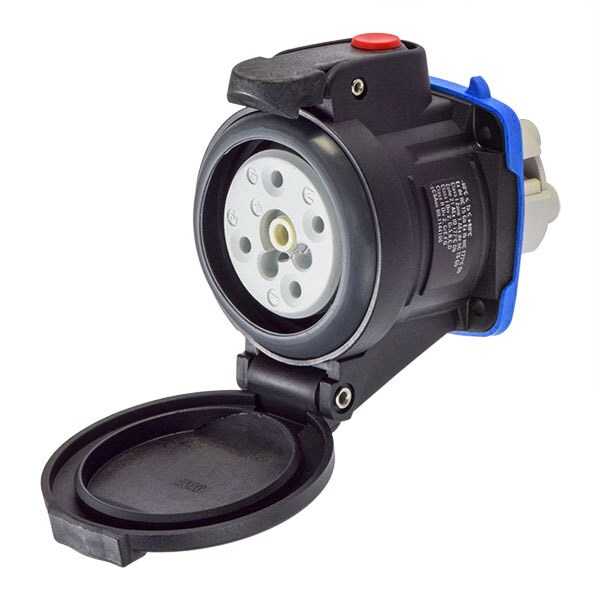

Meltric 22-34167-972 RECEPTACLE 22-34167-972

22-34167-972 RECEPTACLE (Discontinued)

  • Mfr # 22-34167-972
  • Zoro # G101756018
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
22-34167-972
Zoro #
G101756018
UPC #
784474625296
Country of Origin
United States

Dimensions

Accessory Size
2

Details

Material
Poly
Color
Black
Wire Temperature Rating
60C
Rated Current
30A
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Load Break, Normal Operation
30A
Keying Position
16
Impact Rating
IK08
Phase Terminal Type
Screw terminal
Number of Notch Positions
24
Aux. Pilot Contact Current Rating
5A
Maximum Operating Temperature
140F (60C)
Auxiliary Terminal Type
Screw
Horsepower Rating
5HP
Aux. Terminal Wiring Capacity
14 AWG - 10 AWG
Phase Cond. Strip Len.
13/16 in (20 mm)
Voltage Color Code
Blue
Aux. Terminal Tightening Torque
7 IN-LBS / 0.8 N-M
Aux. Contact Max. Voltage Rating
550V
Rated Voltage
208 VAC
Short Circuit Rating, Fusing
25 KA 70A (400%) RK1 NTD
Primary IP Rating
66/67
Load Break, Abnormal Overload
45
Contact Configuration
3P+N+G
Phase Terminal Tightening Torque
10.6 IN-LBS / 1.2 N-M
Minimum Operating Temperature
-40F (-40C)
Frequency
60 Hz
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-13
Number of Auxiliary Contacts
+2 AUX
Aux. Cond. Strip Len.
43/64 in (17 mm)
Wiring Capacity
14 AWG - 6 AWG

Description

DXN30 RECEPTACLE POLY BLACK SIZE 2 IP 66/67 3P+N+G 30A 208 VAC 60 Hz NO AUX
