  11. 22-68143-A155 INLET WITH NO LOCKOUT HOLE
This item is Discontinued.

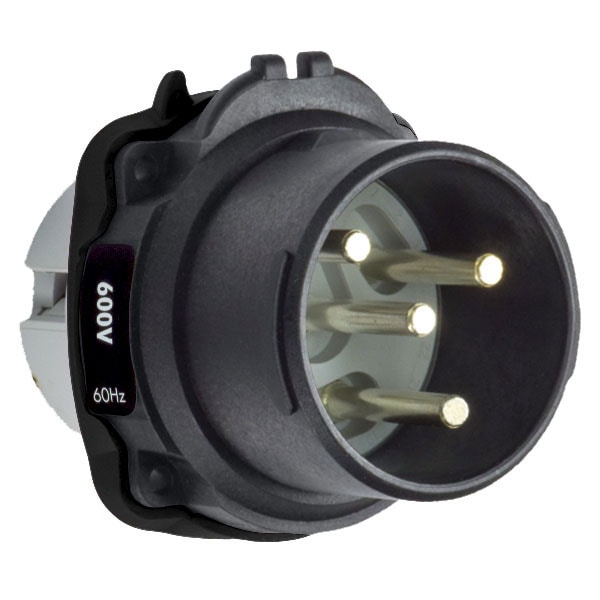

Meltric 22-68143-A155 INLET WITH NO LOCKOUT HOLE 22-68143-A155

22-68143-A155 INLET WITH NO LOCKOUT HOLE (Discontinued)

  • Mfr # 22-68143-A155
  • Zoro # G101755905
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22-68143-A155
Zoro #
G101755905
UPC #
784474009188
Country of Origin
United States

Dimensions

Accessory Size
3

Details

Material
Poly
Color
Black
Voltage Color Code
Black
Phase Terminal Type
Screw terminal
Keying Position
14
Primary IP Rating
66/67
Rated Current
60A
Maximum Operating Temperature
140F (60C)
Horsepower Rating
20HP
Short Circuit Rating, Fusing
25 KA 100A (400%) RK1 NTD
Phase Cond. Strip Len.
83/100 in (21 mm)
Aux. Terminal Wiring Capacity
14 AWG -
Phase Terminal Tightening Torque
22 IN-LBS / 2.49 N-M
Rated Voltage
600 VAC
Load Break, Normal Operation
60
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Wire Temperature Rating
60C
Contact Configuration
3P+G
Minimum Operating Temperature
-40F (-40C)
Frequency
60 Hz
Impact Rating
IK08
Number of Auxiliary Contacts
NO AUX
Load Break, Abnormal Overload
90
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-13
Wiring Capacity
10 AWG - 4 AWG
Number of Notch Positions
24

Description

DXN60 INLET POLY BLACK SIZE 3 IP 66/67 3P+G 60A 600 VAC 60 Hz NO AUX WITH NO LOCKOUT HOLE
