This item is Discontinued.

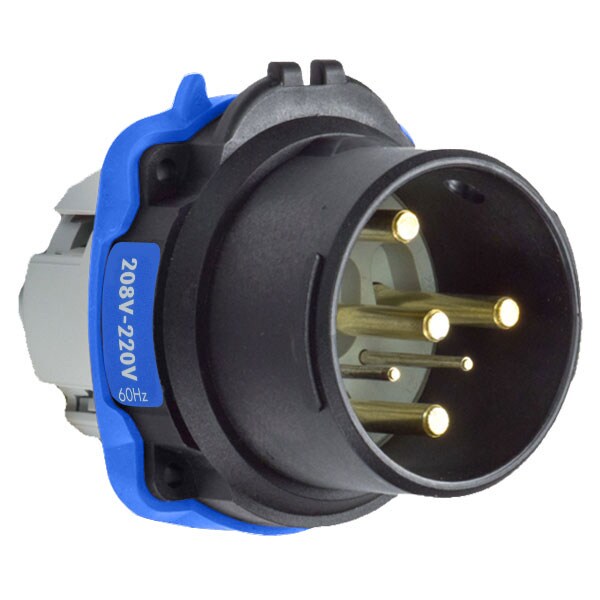

Meltric 22-68163-972 INLET 22-68163-972

22-68163-972 INLET (Discontinued)

  • Mfr # 22-68163-972
  • Zoro # G201756024
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
22-68163-972
Zoro #
G201756024
UPC #
784474635554
Country of Origin
Unknown

Dimensions

Accessory Size
3

Details

Material
Poly
Color
Black
Aux. Terminal Tightening Torque
7 IN-LBS / 0.8 N-M
Load Break, Abnormal Overload
90
Aux. Pilot Contact Current Rating
5A
Load Break, Normal Operation
60
Rated Voltage
208 VAC
Phase Cond. Strip Len.
83/100 in (21 mm)
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-13
Rated Current
60A
Number of Notch Positions
24
Aux. Contact Max. Voltage Rating
550VAC
Phase Terminal Type
Screw terminal
Phase Terminal Tightening Torque
22 IN-LBS / 2.49 N-M
Contact Configuration
3P+G
Wiring Capacity
10 AWG - 4 AWG
Auxiliary Terminal Type
Screw
Keying Position
16
Impact Rating
IK08
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Horsepower Rating
7.5HP
Aux. Cond. Strip Len.
83/100 in (21 mm)
Short Circuit Rating, Fusing
25 KA 100A (400%) RK1 NTD
Wire Temperature Rating
60C
Aux. Terminal Wiring Capacity
14 AWG - 10 AWG
Number of Auxiliary Contacts
+2 AUX
Primary IP Rating
66/67
Minimum Operating Temperature
-40F (-40C)
Frequency
60 Hz
Voltage Color Code
Blue
Maximum Operating Temperature
140F (60C)

Description

DXN60 INLET POLY BLACK SIZE 3 IP 66/67 3P+G 60A 208 VAC 60 Hz +2 AUX
