This item is Discontinued.

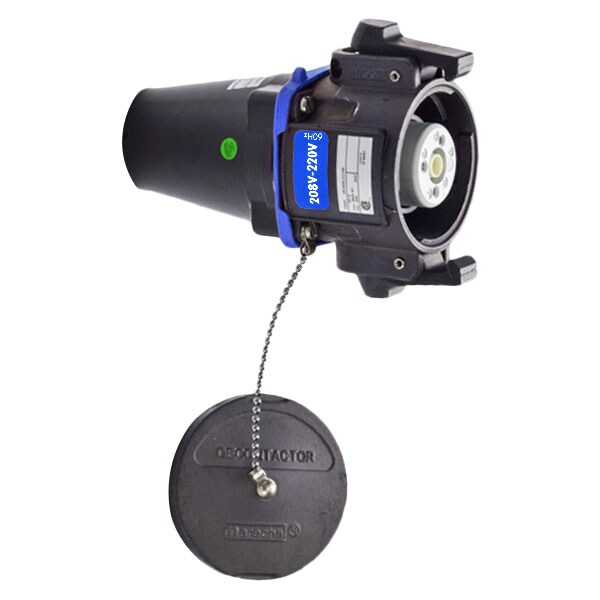

Meltric 281316734 CONNECTOR 281316734

281316734 CONNECTOR (Discontinued)

  • Mfr # 281316734
  • Zoro # G501755628
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
281316734
Zoro #
G501755628
UPC #
784474084857
Country of Origin
Unknown

Dimensions

Thread Size
3/4" NPT
Accessory Size
2

Details

Material
Metal
Color
Black
Number of Notch Positions
24
Minimum Operating Temperature
-67F (-55C)
Load Break, Normal Operation
20A
Primary IP Rating
66/67
CSA Listing
cCSAus || 208161 || C22.2 No. 60079-0 || C22.2 No. 60079-11
Phase Cond. Strip Len.
1/2 in (13 mm)
Load Break, Abnormal Overload
30A
Wiring Capacity
16 AWG - 10 AWG
Short Circuit Rating, Fusing
25 KA 30A (400%) RK1 NTD
Metal Type
Aluminum painted
Rated Current
20A
Contact Configuration
3P+N+G
Wire Temperature Rating
60C
Horsepower Rating
3HP
Phase Terminal Tightening Torque
7.1 IN-LBS / 0.8 N-M
Rated Voltage
208 VAC
Voltage Color Code
Blue
Phase Terminal Type
Screw terminal
Keying Position
16
Impact Rating
IK10
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Frequency
60 Hz
Maximum Operating Temperature
140F (60C)

Description

DXA1 CONNECTOR METAL BLACK SIZE 2 IP 66/67 3P+N+G 20A 208 VAC 60 Hz 3/4" NPT
