This item is Discontinued.

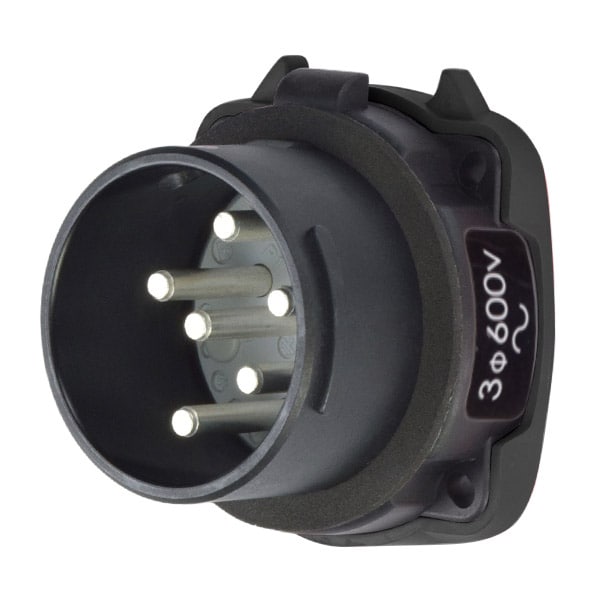

Meltric 35-18143-972-HAZ INLET 35-18143-972-HAZ

35-18143-972-HAZ INLET (Discontinued)

  • Mfr # 35-18143-972-HAZ
  • Zoro # G701756050
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
35-18143-972-HAZ
Zoro #
G701756050
UPC #
784474066600
Country of Origin
Unknown

Dimensions

Accessory Size
2

Details

Material
Poly
Color
Black
Number of Notch Positions
24
Number of Auxiliary Contacts
+2 AUX
Minimum Operating Temperature
-40F (-40C)
Aux. Pilot Contact Current Rating
1.2A
Short Circuit Rating, Fusing
100 KA 80A (400%) RK1 NTD
Rated Current
20A
Load Break, Abnormal Overload
30A
Aux. Cond. Strip Len.
3/4 in (19 mm)
Aux. Terminal Tightening Torque
15 IN-LBS / 1.7 N-M
Rated Voltage
600 VAC
Keying Position
14
NEMA Watertightness
4X
Mating Box
MB3
Wire Temperature Rating
60C
Wiring Capacity, Type W
14 AWG - 8 AWG
Impact Rating
IK08
Horsepower Rating
10HP
Phase Cond. Strip Len.
3/4 in (19 mm)
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987
Short Circuit Rating
100 KA - MAKE & WITHSTAND
Aux. Terminal Wiring Capacity
14 AWG
Voltage Color Code
Black
Aux. Contact Max. Voltage Rating
600VAC
Load Break, Normal Operation
20A
Phase Terminal Type
Screw terminal
Frequency
60 Hz
Auxiliary Terminal Type
Screw
UL508 Pilot Rating
2 @ CODE A600
Maximum Operating Temperature
104F (40C)
Wiring Capacity
14 AWG - 8 AWG
Phase Terminal Tightening Torque
15 IN-LBS / 1.7 N-M
Contact Configuration
3P+G

Description

DS20 INLET POLY BLACK SIZE 2 TYPE 4X 3P+G 20A 600 VAC 60 Hz +2 AUX
