This item is Discontinued.

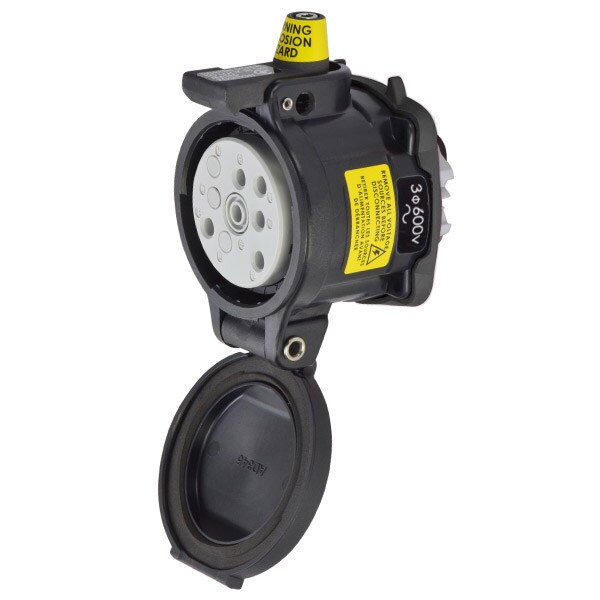

Meltric 35-34143-972-HAZ RECEPTACLE 35-34143-972-HAZ

35-34143-972-HAZ RECEPTACLE (Discontinued)

  • Mfr # 35-34143-972-HAZ
  • Zoro # G801755632
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
35-34143-972-HAZ
Zoro #
G801755632
UPC #
784474064422
Country of Origin
Unknown

Dimensions

Accessory Size
3

Details

Material
Poly
Color
Black
Rated Current
30A
Aux. Terminal Wiring Capacity
14 AWG
Wiring Capacity, Type W
14 AWG - 4 AWG
Phase Terminal Type
Screw terminal
Phase Terminal Tightening Torque
15 IN-LBS / 1.7 N-M
Frequency
60 Hz
Voltage Color Code
Black
Phase Cond. Strip Len.
9/16 in (14 mm)
Number of Notch Positions
24
Auxiliary Terminal Type
Screw
Horsepower Rating
15HP
Load Break, Abnormal Overload
45A
Maximum Operating Temperature
104F (40C)
Aux. Pilot Contact Current Rating
1.2A
NEMA Watertightness
4X
Aux. Contact Max. Voltage Rating
600VAC
UL508 Pilot Rating
2 @ CODE A600
Number of Auxiliary Contacts
+2 AUX
Load Break, Normal Operation
30A
Wiring Capacity
14 AWG - 4 AWG
Impact Rating
IK08
Short Circuit Rating, Fusing
100 KA 125A (400%) RK1 NTD
Keying Position
14
Wire Temperature Rating
60C
Aux. Terminal Tightening Torque
15 IN-LBS / 1.7 N-M
Contact Configuration
3P+G
Aux. Cond. Strip Len.
1/2 in (13 mm)
Short Circuit Rating
100 KA - MAKE & WITHSTAND
Minimum Operating Temperature
-40F (-40C)
Mating Box
MB3
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987
Rated Voltage
600 VAC

Description

DS30 RECEPTACLE POLY BLACK SIZE 3 TYPE 4X 3P+G 30A 600 VAC 60 Hz +2 AUX
