This item is Discontinued.

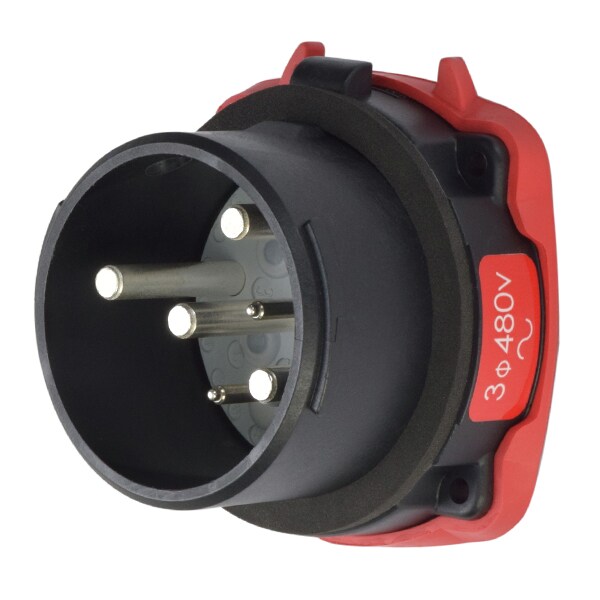

Meltric 35-38043-972-HAZ INLET 35-38043-972-HAZ

35-38043-972-HAZ INLET (Discontinued)

  • Mfr # 35-38043-972-HAZ
  • Zoro # G801756042
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
35-38043-972-HAZ
Zoro #
G801756042
UPC #
784474085304
Country of Origin
Unknown

Dimensions

Accessory Size
3

Details

Material
Poly
Color
Black
Rated Current
30A
Mating Box
MB3
Phase Terminal Tightening Torque
15 IN-LBS / 1.7 N-M
Keying Position
4
Horsepower Rating
15HP
Aux. Pilot Contact Current Rating
1.2A
Short Circuit Rating, Fusing
100 KA 125A (400%) RK1 NTD
Maximum Operating Temperature
104F (40C)
Number of Notch Positions
24
UL508 Pilot Rating
2 @ CODE A600
Load Break, Abnormal Overload
45A
Phase Cond. Strip Len.
7/8 in (22 mm)
Contact Configuration
3P+G
Load Break, Normal Operation
30A
Voltage Color Code
Red
Wiring Capacity
14 AWG - 4 AWG
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987
Minimum Operating Temperature
-40F (-40C)
Phase Terminal Type
Screw terminal
Wire Temperature Rating
60C
Number of Auxiliary Contacts
+2 AUX
NEMA Watertightness
4X
Aux. Contact Max. Voltage Rating
600VAC
Frequency
60 Hz
Wiring Capacity, Type W
14 AWG - 4 AWG
Impact Rating
IK08
Short Circuit Rating
100 KA - MAKE & WITHSTAND
Rated Voltage
480 VAC

Description

DS30 INLET POLY BLACK SIZE 3 TYPE 4X 3P+G 30A 480 VAC 60 Hz +2 AUX
