This item is Discontinued.

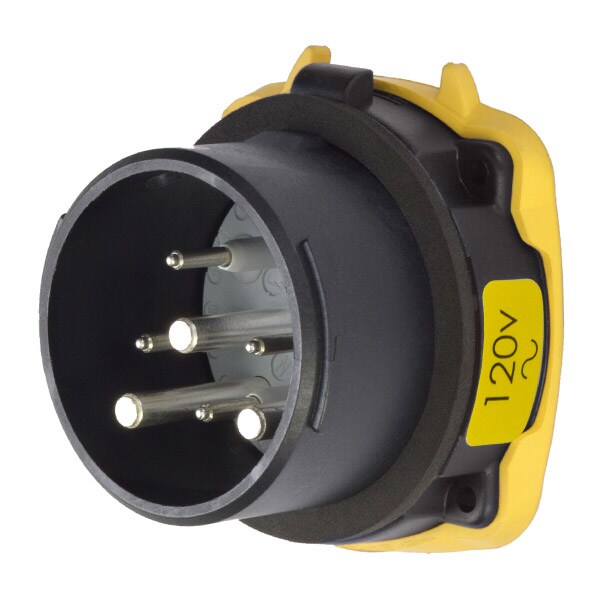

Meltric 35-38165-974-HAZ INLET 35-38165-974-HAZ

35-38165-974-HAZ INLET (Discontinued)

  • Mfr # 35-38165-974-HAZ
  • Zoro # G601756105
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
35-38165-974-HAZ
Zoro #
G601756105
UPC #
784474082242
Country of Origin
Unknown

Dimensions

Accessory Size
3

Details

Material
Poly
Color
Blue
Aux. Contact Max. Voltage Rating
600VAC
Voltage Color Code
Yellow
Wiring Capacity, Type W
14 AWG - 4 AWG
Horsepower Rating
15HP
Wiring Capacity
14 AWG - 4 AWG
Rated Voltage
120 VAC
Contact Configuration
1P+N+G
Impact Rating
IK08
Rated Current
30A
NEMA Watertightness
4X
Phase Cond. Strip Len.
7/8 in (22 mm)
Phase Terminal Tightening Torque
15 IN-LBS / 1.7 N-M
Number of Notch Positions
24
Load Break, Normal Operation
30A
Wire Temperature Rating
60C
Number of Auxiliary Contacts
+4 AUX
Keying Position
16
Load Break, Abnormal Overload
45A
Mating Box
MB3
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987
Minimum Operating Temperature
-40F (-40C)
Short Circuit Rating
100 KA - MAKE & WITHSTAND
Frequency
60 Hz
UL508 Pilot Rating
4 @ CODE A600
Aux. Pilot Contact Current Rating
1.2A
Phase Terminal Type
Screw terminal
Maximum Operating Temperature
104F (40C)
Short Circuit Rating, Fusing
100 KA 125A (400%) RK1 NTD

Description

DS30 INLET POLY BLUE SIZE 3 TYPE 4X 1P+N+G 30A 120 VAC 60 Hz +4 AUX
