This item is Discontinued.

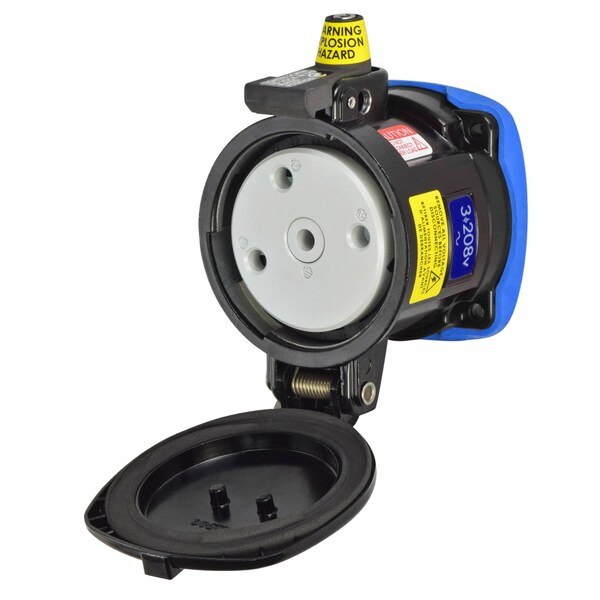

Meltric 36-64163-HAZ RECEPTACLE 36-64163-HAZ

36-64163-HAZ RECEPTACLE (Discontinued)

  • Mfr # 36-64163-HAZ
  • Zoro # G301755958
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
36-64163-HAZ
Zoro #
G301755958
UPC #
784474066082
Country of Origin
Unknown

Dimensions

Accessory Size
4

Details

Material
Metal
Color
Black
Phase Terminal Type
Screw terminal
Keying Position
16
Minimum Operating Temperature
-40F (-40C)
Short Circuit Rating
100 KA - MAKE & WITHSTAND
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987
Mating Box
MB6
Phase Terminal Tightening Torque
48 IN-LBS / 5.4 N-M
Contact Configuration
3P+G
Frequency
60 Hz
Horsepower Rating
10HP
Rated Current
60A
Impact Rating
IK09
Wiring Capacity
10 AWG - 2 AWG
Voltage Color Code
Blue
Number of Notch Positions
24
Wiring Capacity, Type W
10 AWG - 2 AWG
Rated Voltage
208 VAC
Number of Auxiliary Contacts
NO AUX
Phase Cond. Strip Len.
15/16 in (24 mm)
Wire Temperature Rating
60C
Maximum Operating Temperature
104F (40C)
Load Break, Normal Operation
90A
Metal Type
Zamak
Short Circuit Rating, Fusing
100 KA 250A (400%) RK1 NTD
NEMA Watertightness
4X

Description

DS60 RECEPTACLE METAL BLACK SIZE 4 TYPE 4X 3P+G 60A 208 VAC 60 Hz NO AUX
