This item is Discontinued.

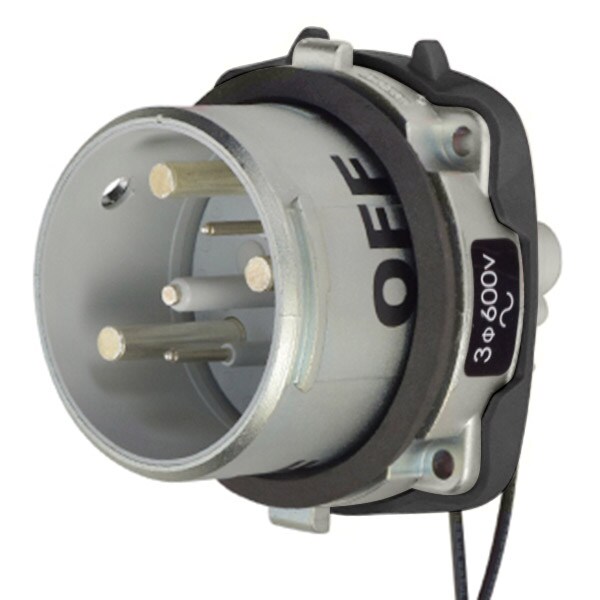

Meltric 36-68143-972-HAZ INLET 36-68143-972-HAZ

36-68143-972-HAZ INLET (Discontinued)

  • Mfr # 36-68143-972-HAZ
  • Zoro # G801755823
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36-68143-972-HAZ
Zoro #
G801755823
UPC #
784474069441
Country of Origin
Unknown

Dimensions

Accessory Size
4

Details

Material
Metal
Color
Black
Short Circuit Rating, Fusing
100 KA 250A (400%) RK1 NTD
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987
Number of Notch Positions
24
Keying Position
14
Mating Box
MB6
Short Circuit Rating
100 KA - MAKE & WITHSTAND
Phase Cond. Strip Len.
15/16 in (24 mm)
Impact Rating
IK09
Rated Current
60A
Frequency
60 Hz
UL508 Pilot Rating
2 @ CODE A600
Phase Terminal Type
Screw terminal
Voltage Color Code
Black
Metal Type
Zamak
Aux. Contact Max. Voltage Rating
600VAC
Maximum Operating Temperature
104F (40C)
Minimum Operating Temperature
-40F (-40C)
Number of Auxiliary Contacts
+2 AUX
Wiring Capacity, Type W
10 AWG - 2 AWG
Phase Terminal Tightening Torque
48 IN-LBS / 5.4 N-M
Wiring Capacity
10 AWG - 2 AWG
Contact Configuration
3P+G
Wire Temperature Rating
60C
Aux. Pilot Contact Current Rating
1.2A
Horsepower Rating
25HP
Load Break, Normal Operation
90A
NEMA Watertightness
4X
Auxiliary Terminal Type
Prewired
Aux. Terminal Wiring Capacity
14 AWG - 14 AWG
Rated Voltage
600 VAC

Description

DS60 INLET METAL BLACK SIZE 4 TYPE 4X 3P+G 60A 600 VAC 60 Hz +2 AUX
