  6. Pin & Sleeve Inlet, 100 A, 480V AC, Three Phase, 3 Pole, Style 2 Grounding, Silver, NEMA 4X

This item is Discontinued.

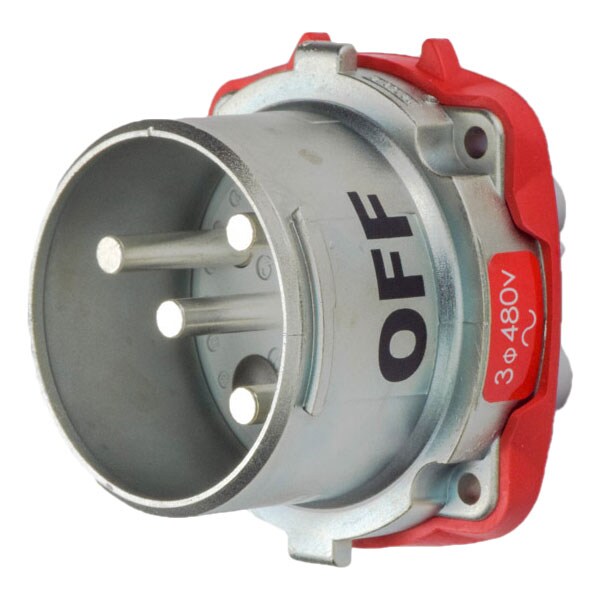

Meltric Pin & Sleeve Inlet, 100 A, 480V AC, Three Phase, 3 Pole, Style 2 Grounding, Silver, NEMA 4X 39-68243-K04

Pin & Sleeve Inlet, 100 A, 480V AC, Three Phase, 3 Pole, Style 2 Grounding, Silver, NEMA 4X (Discontinued)

  • Mfr # 39-68243-K04
  • Zoro # G501759411
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39-68243-K04
Zoro #
G501759411
UPC #
784474612548
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 15/16 in (24 mm)
Wire Size
10 AWG to 2 AWG
Use With Installation Accessory Size
4
Dimensions
3.62 in Dia x 2.2 in L

Details

Item
Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Material
Metal
Grounding Style
Style 2
Use With
Mating Box MB6
Body Material
Zamak
Impact Rating
IK09
Number of Notch Positions
24
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Wire Temperature Rating
60 Degrees C
Number of Aux. Outputs
NO AUX
Color Code
Red
Contact Configuration
3P+G
Load Break Amp Rating
100A
Operating Temp. Range
-40C to 60C
Hz
60 Hz
Keying Position
24
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating_Abnormal Overload
150A
Temperature Rating
-40 to 140 °F
Enclosure
IP54/IP55
Series
DR100
Flange Type
Flanged

Description

DR100 INLET METAL SIZE 4 TYPE 3R 3P+G 100A 480 VAC 60 Hz NO AUX
