  11. Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

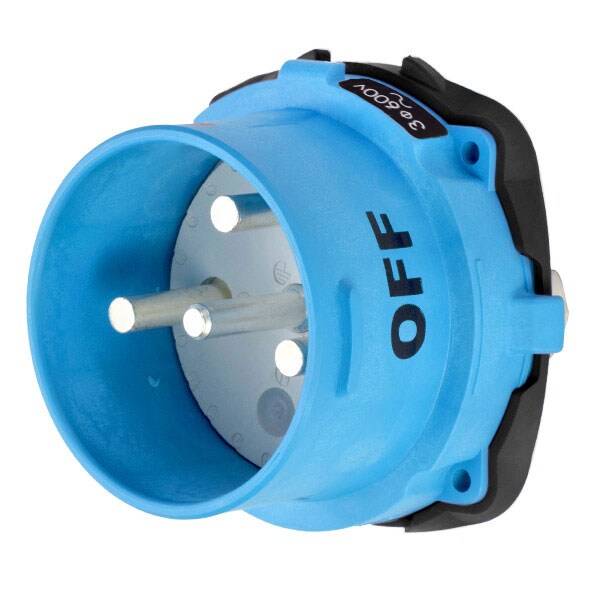

Meltric Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue 33-98143-A155

Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 33-98143-A155
  • Zoro # G601757379
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-98143-A155
Zoro #
G601757379
UPC #
784474655545
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 1-3/16 in (30 mm)
Wire Size
4 AWG to 2/0 AWG
Use With Installation Accessory Size
5

Details

Item
Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Impact Resistant
Body Material
Polyester
Switch Rated
Yes
Use With
Mating Box MB10
Impact Rating
IK08
Load Break Amp Rating
100A
Color Code
Black
Operating Temp. Range
-40C to 60C
Keying Position
14
Hz
60 Hz
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Contact Configuration
3P+G
Number of Notch Positions
24
Number of Aux. Outputs
NO AUX
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DS100 INLET POLY BLUE SIZE 5 TYPE 4X 3P+G 100A 600 VAC 60 Hz NO AUX WITH NO LOCKOUT HOLE
