  11. Pin & Sleeve Inlet, 200 A, 600V AC, Three Phase, 3 Pole, Style 2 Grounding, Silver, NEMA 4X

This item is Discontinued.

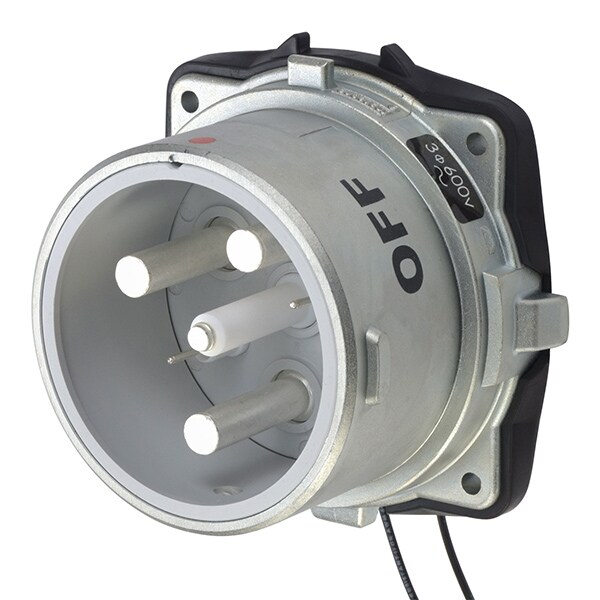

Meltric Pin & Sleeve Inlet, 200 A, 600V AC, Three Phase, 3 Pole, Style 2 Grounding, Silver, NEMA 4X 37-28143-972

Pin & Sleeve Inlet, 200 A, 600V AC, Three Phase, 3 Pole, Style 2 Grounding, Silver, NEMA 4X (Discontinued)

  • Mfr # 37-28143-972
  • Zoro # G801758565
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
37-28143-972
Zoro #
G801758565
UPC #
784474085779
Country of Origin
Unknown

Dimensions

Wire Strip Length
Phase: 1-1/2 in (38 mm)
Wire Size
14 AWG; 4 AWG to 4/0 AWG
Use With Installation Accessory Size
6

Details

Item
Pin & Sleeve Inlet
Current Rating
200 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Voltage
600V AC
HP
100
NEMA Rating
4X
Use With
Mating Box MB20
Switch Rated
Yes
Body Material
Aluminum
Grounding Style
Style 2
Number of Notch Positions
12
Short Circuit Current Rating
10 KA - MAKE & WITHSTAND
Number of Aux. Outputs
+2 AUX
Terminal Type
Screw terminal
Color Code
Black
Operating Temp. Range
-40C to 60C
Load Break Amp Rating
200A
Auxiliary Contact Rating
0.3A
Auxiliary Contact Voltage Rating
600VAC
Terminal Connection
Prewired
Contact Configuration
3P+G
Keying Position
14
Tightening Torque
Phase: 110 IN-LBS / 12.4 N-M
Hz
60 Hz
Wire Temperature Rating
60 Degrees C
Impact Rating
IK10
Load Break Amp Rating_Abnormal Overload
300A
Flange Type
Flanged

Description

DS200 INLET METAL SIZE 6 TYPE 3R 3P+G 200A 600 VAC 60 Hz +2 AUX
