  6. Pin & Sleeve Inlet, 250 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver, NEMA 4X

This item is Discontinued.

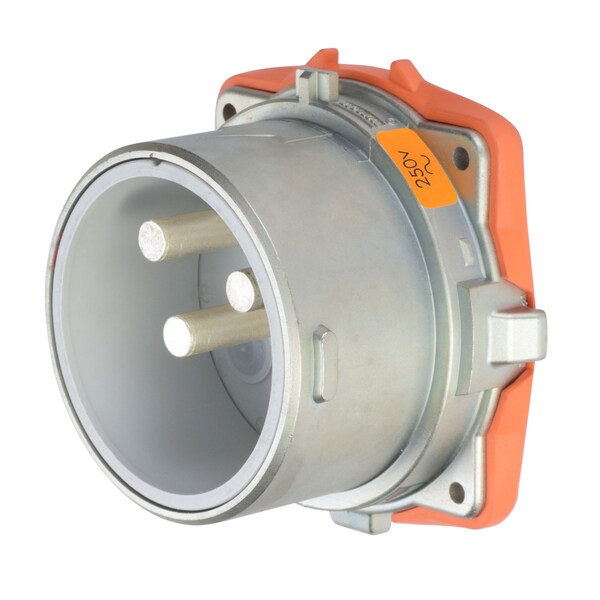

Meltric Pin & Sleeve Inlet, 250 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver, NEMA 4X 39-28032-K07

Pin & Sleeve Inlet, 250 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver, NEMA 4X (Discontinued)

  • Mfr # 39-28032-K07
  • Zoro # G201759063
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39-28032-K07
Zoro #
G201759063
UPC #
784474612838
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 1-1/2 in (38 mm)
Wire Size
4 AWG to 4/0 AWG
Use With Installation Accessory Size
6

Details

Item
Pin & Sleeve Inlet
Current Rating
250 A
Voltage Rating
250V AC
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Use With
Mating Box MB20
Body Material
Zamak
Contact Configuration
2P+G
Wire Temperature Rating
60 Degrees C
Keying Position
3
Operating Temp. Range
-40C to 60C
Hz
60 Hz
Number of Notch Positions
12
Tightening Torque
Phase: 110 IN-LBS / 12.4 N-M
Number of Aux. Outputs
NO AUX
Impact Rating
IK09
Short Circuit Current Rating
10 KA - MAKE & WITHSTAND
Color Code
Orange
Load Break Amp Rating
250A
Load Break Amp Rating_Abnormal Overload
375A

Description

DR250 INLET METAL SIZE 6 TYPE 3R 2P+G 250A 250 VAC 60 Hz NO AUX
