  6. Pin & Sleeve Inlet, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

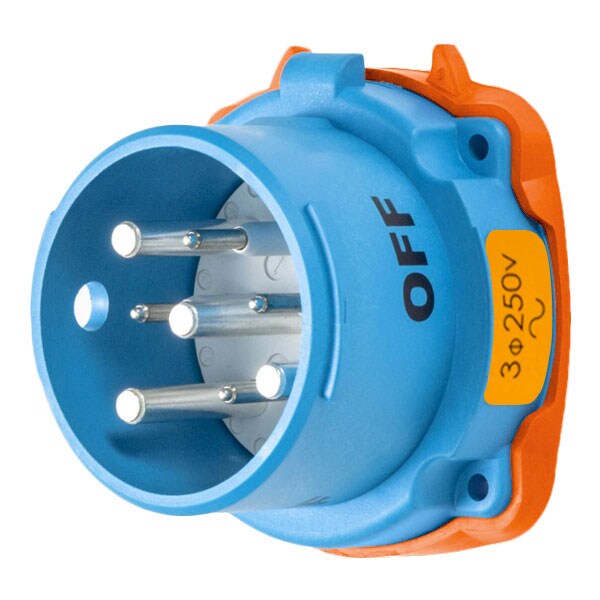

Meltric Pin & Sleeve Inlet, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue 33-38073-974

Pin & Sleeve Inlet, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 33-38073-974
  • Zoro # G701756906
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-38073-974
Zoro #
G701756906
UPC #
784474602556
Country of Origin
United States

Dimensions

Wire Strip Length
Auxiliary: 5/8 in (16 mm); Phase: 7/8 in (22 mm)
Wire Size
14 AWG; 14 AWG to 4 AWG
Use With Installation Accessory Size
3

Details

Item
Pin & Sleeve Inlet
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP54
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
HP
5
Switch Rated
Yes
Use With
Mating Box MB3
Hz
60 Hz
Auxiliary Contact Rating
1.2A
Terminal Connection
Screw
Load Break Amp Rating
30A
Contact Configuration
3P+G
Number of Aux. Outputs
+4 AUX
Number of Notch Positions
24
Operating Temp. Range
-40C to 60C
Auxiliary Contact Voltage Rating
600VAC
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Impact Rating
IK08
Color Code
Orange
Wire Temperature Rating
60 Degrees C
Keying Position
7
Load Break Amp Rating_Abnormal Overload
45A

Description

DS30 INLET POLY BLUE SIZE 3 TYPE 3R 3P+G 30A 250 VAC 60 Hz +4 AUX
