  11. Pin & Sleeve Inlet, 30 A, 347/600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

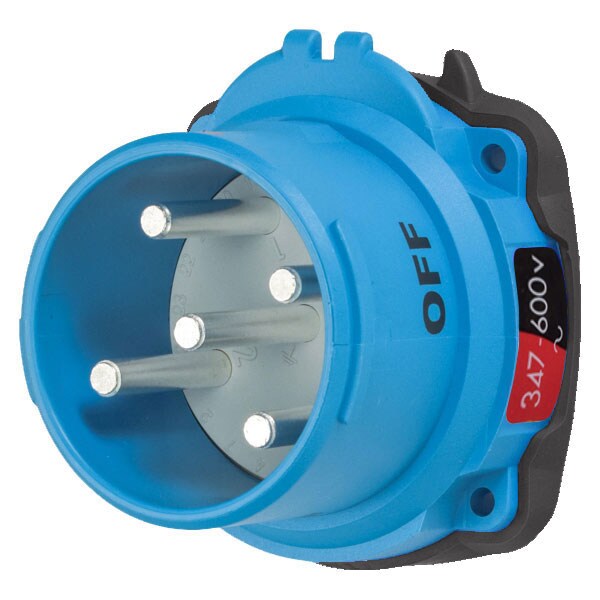

Meltric Pin & Sleeve Inlet, 30 A, 347/600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 63-38147-A155

Pin & Sleeve Inlet, 30 A, 347/600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-38147-A155
  • Zoro # G401756466
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63-38147-A155
Zoro #
G401756466
UPC #
784474064033
Country of Origin
Unknown

Dimensions

Wire Strip Length
Phase: 3/4 in (19 mm)
Wire Size
14 AWG to 8 AWG
Use With Installation Accessory Size
2

Details

Item
Pin & Sleeve Inlet
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682
Resistance Properties
Impact Resistant
HP
15
Switch Rated
Yes
Use With
Mating Box MB3
Body Material
Polyester
Operating Temp. Range
-40C to 60C
Keying Position
14
Color Code
Black
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating
30A
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Impact Rating
IK08
Hz
60 Hz
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Number of Aux. Outputs
NO AUX
Contact Configuration
3P+N+G
Number of Notch Positions
24
Load Break Amp Rating_Abnormal Overload
45A

Description

DSN30 INLET POLY BLUE SIZE 2 TYPE 4X IP 69 3P+N+G 30A 347/600 VAC 60 Hz NO AUX WITH NO LOCKOUT HOLE
